Trouble setting landscape orientation when printing using TIS.TX.TextControl with PowerBuilder
  1. New
  2. How-to
  3.  OLE
0 Votes
  1. Alex Rodrigues
  2. PowerBuilder
  3. Saturday, 21 June 2025 03:09 PM UTC

We are experiencing a problem when trying to print a document in landscape mode using the OLE control TIS.TX.TextControl, tested with both versions 13 and 15, inside a PowerBuilder application (version 2019 R3 Build 2728).

The PowerBuilder Object Browser lists the PageOrientation property for version 15 of TIS.TX.TextControl. However, when we try to assign 2 to this property (to indicate landscape), we get a runtime error:

PowerBuilder Error 36
Message: Name not found accessing external object property pageorientation at line 31
Object: u_nv_monta_laudo
Function: of_txcontrol_montar_texto

Sample code:

i_uo_ole_tx.ConnectToNewObject("TIS.TX.TextControl.15")

i_objTX = i_uo_ole_tx.object

IF p_rte.pageorientation = PaperLandscape! THEN
   i_objTX.PageOrientation = 2
END IF

Even though the OLE object connects successfully:

ole.ConnectToNewObject("TIS.TX.TextControl.15")

The PageOrientation property seems inaccessible at runtime, despite appearing in the PowerBuilder browser.

We kindly ask for your support:
- Is there an official way to set landscape printing using TIS.TX.TextControl within PowerBuilder?
- Is the PageOrientation property supposed to work in version 15 via OLE Automation?
- Are there any recommended workarounds for this?

We appreciate your help and look forward to your guidance on this matter.

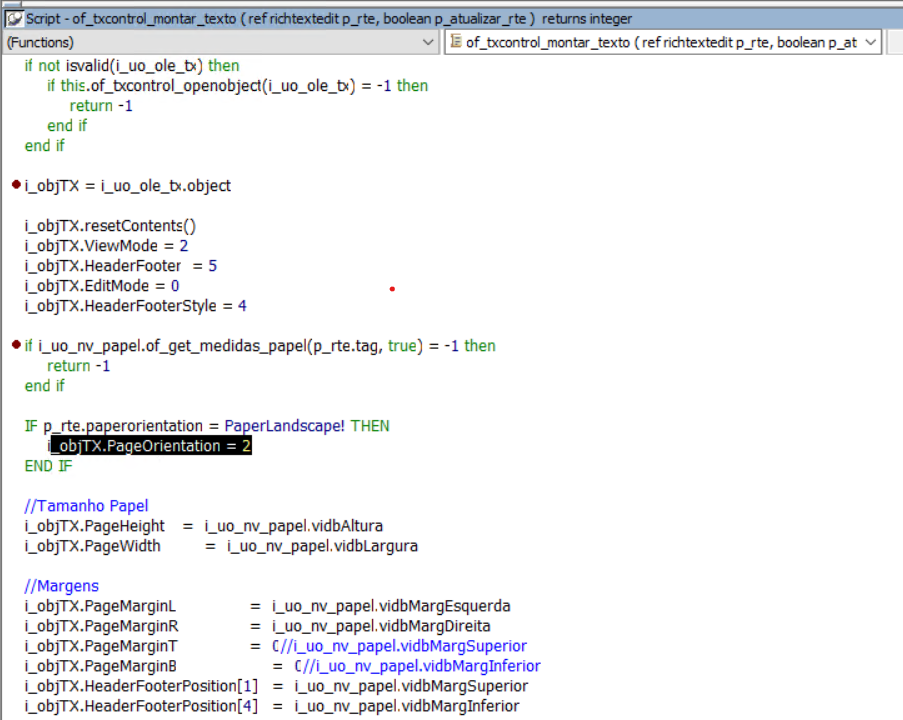

Attachments (1)
Código PageOrientation.png Código PageOrientation.png
