PowerServer 2021 Web API URL
  1. How-to
0 Votes
  1. Thomas Rolseth
  2. PowerServer
  3. Monday, 25 July 2022 06:10 PM UTC

I have a client who will be running several apps in PowerServer 2021 and thus I want to setup IIS with a multiple-site configuration.  To this end, I went through the tutorials in an effort to get this properly configured.  Here is what I've done:

  1. created inbound rule for port 81 on web server running IIS (Windows Server 2016)
  2. configured PowerServer project in client app
  3. CAL installed ok

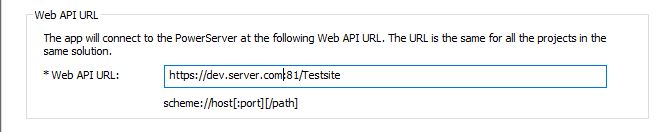

  4. set web api url on Web APIs tab to https://dev.server.com:81/Testsite (see attached)
  5. Database config (SQL Server) works fine
  6. Deployed PS project with no errors
  7. created second web site called 'Testsite' in IIS and linked it to port 81 (https://docs.appeon.com/ps2021/Creating_an_IIS_website.html).  The root path is C:\inetpub\testsite_root

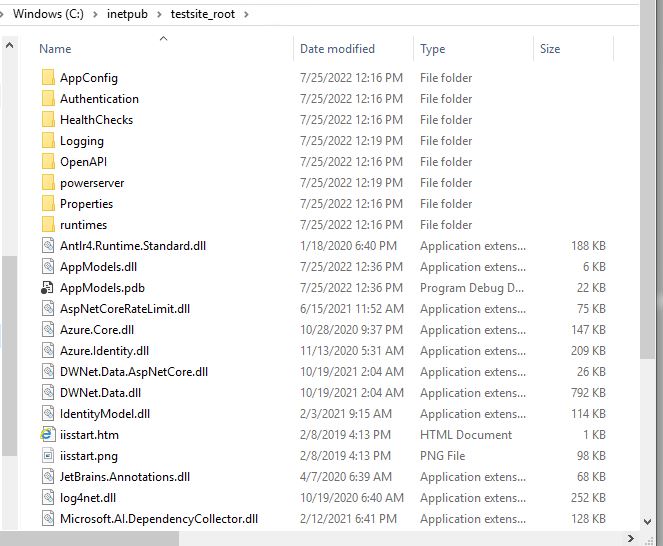

  8. followed instructions for publishing web api using file system (https://docs.appeon.com/ps2021/Using_the_File_System_method.html) and copied all files to C:\inetpub\testsite_root (see attached)

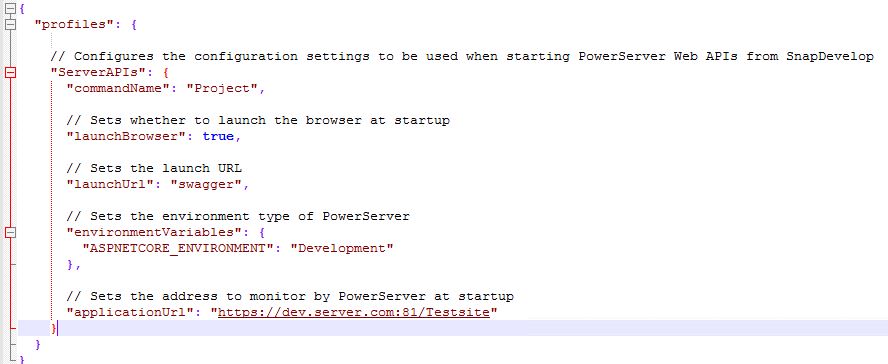

  9. launchsettings.json has the same url as shown in #4 above (see attached)

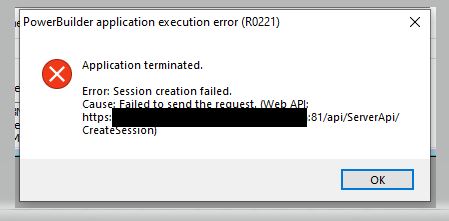

When I launch the CAL in my browser, the app starts loading but eventually fails with the CreateSession error -- see attached.  Can someone offer some advice on how to get past this error?

Thanks, Tom

Attachments (4)
web_api_root.JPG web_api_root.JPG
ps_app_error.JPG ps_app_error.JPG
launchsettings.JPG launchsettings.JPG
web_api_tab.JPG web_api_tab.JPG
