PowerBuilder DW Painter not listing Oracle packages/procedures despite full DEV grants
  1. New
  2. Issue
  3.  Configuration
  4.  Database Driver
  5.  DataObject
  6.  DataSource
  7.  DataWindow
  8.  IDE
  9.  Oracle
  10.  Package
  11.  PB Native
  12.  Stored Procedure
0 Votes
  1. Naveen Yendamuri
  2. PowerBuilder
  3. Monday, 13 October 2025 08:49 PM UTC

In DataWindow Painter, packages and their procedures are not visible/selectable as data sources. We get only tables/views/some standalone procedures. Our DBA states we have full access in DEV (EXECUTE on packages, etc.). We can run the package procedures in SQL tools, but PB doesn’t recognize them for DW creation, and sometimes shows “cursor-based stored procedure has no columns.”



  • Packages under MNDWIS do not appear in the DW Painter object list.

  • If we type the name manually, PB often reports no columns or simply won’t resolve the routine.

  • ✅ DBA confirms EXECUTE on the package(s) and underlying objects for our login in DEV.

  • ✅ We can call the packaged procedure from SQL (it runs).

  • ✅ Procedure returns a result set via SYS_REFCURSOR (for DW use).

  • ✅ No DB errors on connect; other objects are visible.

FYI,

Product / Version

  • PowerBuilder: PB 2019 R3 / 2022 R1 Build:2819

  • DB interface: Oracle Native driver ODBC

  • Oracle Client: Oracle 19c 32-bit

  • App/IDE bitness: 32-bit

Attachments (1)

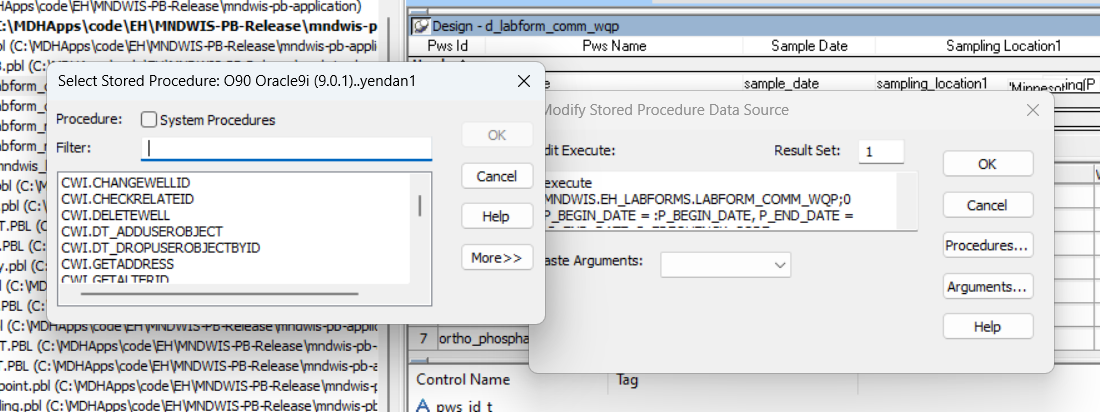

Appeon_ticket_proc.png Appeon_ticket_proc.png
