PB2025R2 PerMonitorV2 — initial window layout wrong when primary monitor is scaled
  1. New
  2. Issue
0 Votes
  1. Steen Jakobsen
  2. PowerBuilder
  3. Tuesday, 7 July 2026 10:31 AM UTC

Environment: PowerBuilder 2025 R2, Runtime 25.1.0.6430, 64-bit. Application HighDpiMode = PerMonitorV2(4). Windows 11.

Issue: When the compiled EXE starts while the PRIMARY monitor is scaled above 100% (e.g. 125% or 150%), the main window's initial layout is wrong — all controls are mispositioned (see screenshots). When the primary monitor is at 100%, the layout is correct, and dragging the window onto a scaled secondary monitor re-scales perfectly.

The wrong initial layout is corrected only by dragging the window to another monitor (a real DPI change). Once corrected, it stays correct — including when dragged back onto the scaled monitor. Minimizing/restoring the window does NOT correct it. The issue does not appear when running from the IDE.

Repro:
1. Set the primary monitor's scaling to 125%.
2. Build and run the application as an EXE.
3. The main window opens with all controls mispositioned.
4. Drag the window to a second (100%) monitor and back — the layout becomes correct.

Impact: Users on a single scaled display (e.g. a 150% laptop with no external monitor) have no way to trigger the correction, so the layout stays broken permanently.

Question: Is this a known issue, and is there a supported way to force the initial layout to compute at the correct DPI at startup?



Thanks

//Steen

ps. PB2025R2 is just awesome!!!

Attachments (2)

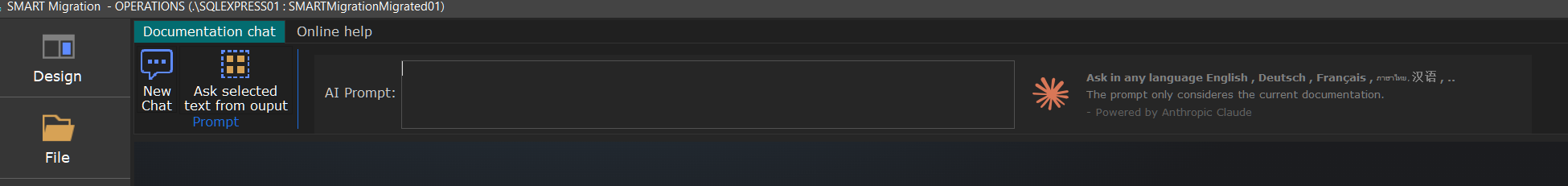

Good on not scaled monitor.png Good on not scaled monitor.png

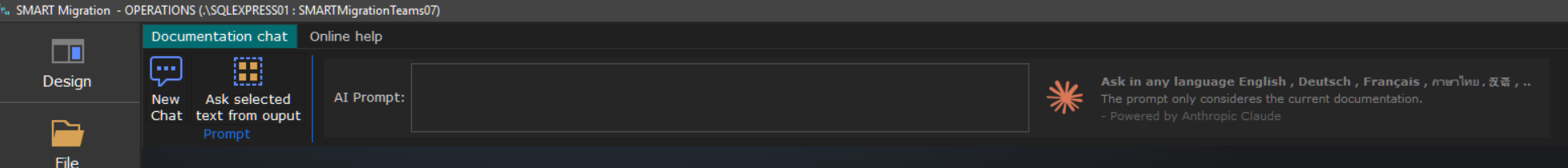

bad on scaled 125pct.png bad on scaled 125pct.png
