Labels are blurred or truncated when zooming a datawindow
  1. New
  2. How-to
0 Votes
  1. Gastón Clara
  2. PowerBuilder
  3. Thursday, 10 July 2025 02:00 PM UTC

Hi,

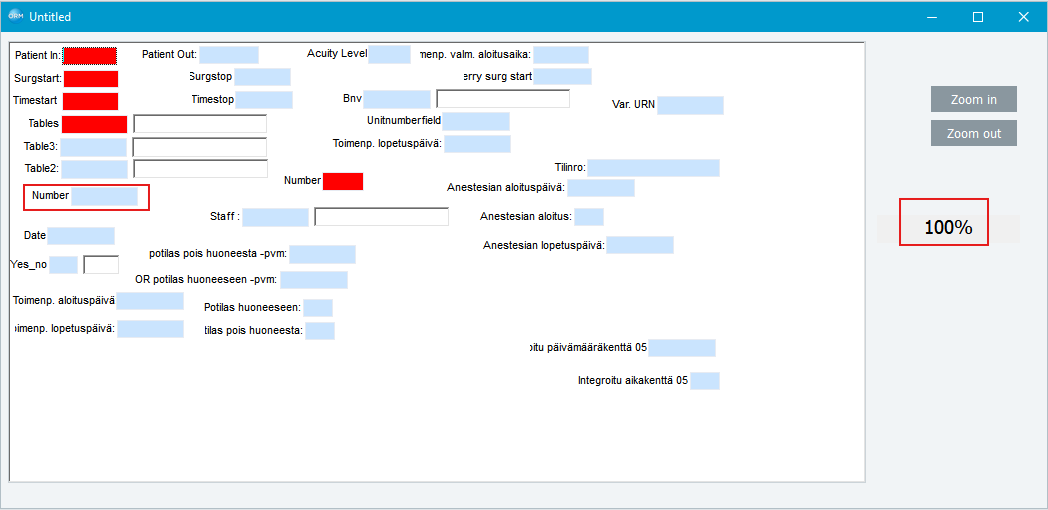

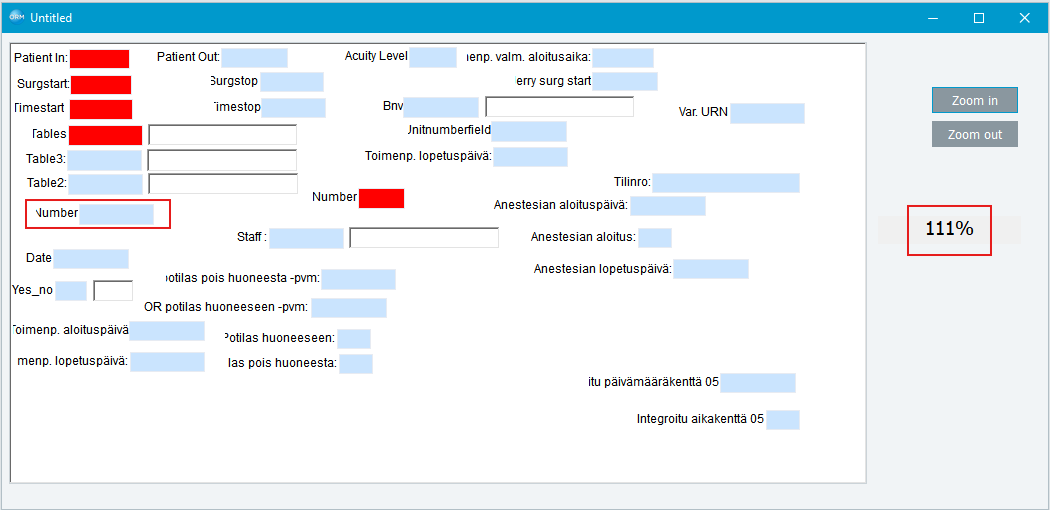

I'm running a PB2022R2 application under Windows 11 and what's happening is that when I zoom the content of a datawindow the text on the labels are blurred or truncated. See attached examples.



I've tried some of the suggestions on the web, modified the applications manifest with:

<asmv3:windowsSettings> <dpiAware xmlns="http://schemas.microsoft.com/SMI/2005/WindowsSettings">true</dpiAware> <dpiAwareness xmlns="http://schemas.microsoft.com/SMI/2016/WindowsSettings">PerMonitorV2</dpiAwareness> </asmv3:windowsSettings>

Modified DPI properties of the executable file, but nothing seems to work.

I know it's something related to the monitors, resolutions, etc., so it seems a non-easy issue to solve. What I wonder is if there's something else I can do to not have this problem, no matter where the application runs and which is the zoom that I apply to the datawindow.



Thanks.



Attachments (1)
OK.png OK.png
