Autosize height property
  1. How-to
  2.  DataWindow
  3.  PowerBuilder (Appeon)
0 Votes
  1. Sivaprakash BKR
  2. PowerBuilder
  3. Tuesday, 4 June 2019 11:12 AM UTC

Hello,

PB 2017 R3

Need to set Autosize height property for few columns in the header#1 band.

The output is a bill format, with company name and address at top, few columns in both ends [ left & right side] of the paper.  eg.

**********************************************************************************************

Company Name
Address-Line 1
Address-Line 2
Address-Line3
City-Pincode

Tel: XXXXXXXXXXXXXXXXXXXXXXXX                                                                      GST: 33XXXXXXXXXXX
Mob: 9XXXXXXXXXXXXX                                                                                       Counter 3

Bill No. : WB-33                                                                                                  Vou No. : WB-33
Bill Date : 18/02/2019                                                                                          Type : Cash

Name :
Mobile :
**********************************************************************************************

All the above details appear in header#1 band.  Here Address-Line1, Address-Line2, Address-Line3 may or may not contain details.  Hence those column heights are made zero, with Autosizeheight property set to true  and also the band autosizeeheight property to true.

But I see the results are overlapping.  Address-Line 1and Address-Line 2 overlaps.

Similarly in Footer#1 band also, there is one such column to be set with autosize height property [ie it to appear only when there is a non-zero value ].

How to avoid this overlapping ? Don't want to have empty spaces when no values for such columns.





Attachments (1)

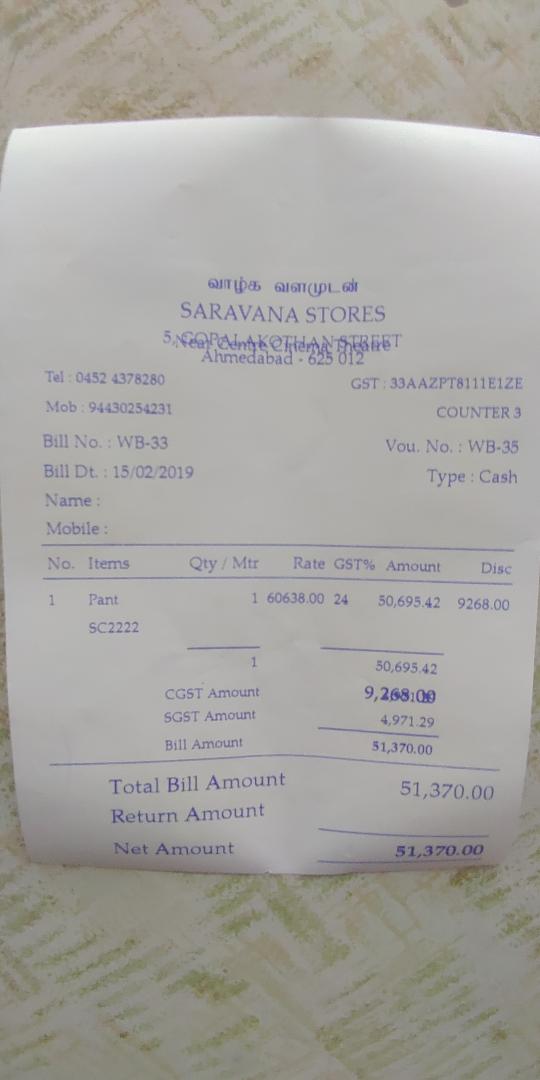

Bill sample.jpg Bill sample.jpg
