PowerBuilder 2025 R2 AES-GCM: Native Authenticated Encryption and Tamper Detection

A technical demo of the new cryptographic capabilities in PowerBuilder 2025 R2 using CrypterObject, CoderObject, AES-256-GCM, hexadecimal payloads, and Auth Tag validation.

Introduction

PowerBuilder 2025 R2 introduces a major security improvement for business applications: native support for modern cryptographic operations through CrypterObject and CoderObject. This demo project focuses on one of the most relevant additions for enterprise systems: AES-GCM authenticated encryption.

AES-GCM is not just encryption. It is authenticated encryption, meaning the receiver can detect whether the encrypted payload was altered after it left the sender. For payment files, tax documents, ERP messages, API payloads, banking instructions, and any sensitive JSON exchange, this changes the security model: confidentiality and integrity are handled as one operation.

This article uses the demo project Demo_AES-GCM_pb, implemented in the window w_demo_security.srw. The user encrypts a fiscal JSON payload, transmits it as hexadecimal text, simulates reception, and then intentionally modifies one character to prove that tampering is rejected.

Why AES-GCM Matters

Legacy symmetric encryption patterns often relied on AES-CBC or AES-ECB plus a separate HMAC process. That model works only when every step is implemented correctly: IV management, padding handling, MAC calculation, MAC verification, and error behavior. AES-GCM simplifies the design by producing an authentication tag as part of the encryption process.

Advantage of the New Method in PowerBuilder 2025 R2

1. Retrospective analysis: the vulnerable approach in earlier versions

Historically, symmetric encryption in PowerBuilder environments was commonly implemented with algorithms such as AES in CBC (Cipher Block Chaining) mode or ECB (Electronic Codebook) mode, usually through standard CrypterObject functions. Although this protected basic confidentiality, it still exposed well-known critical vulnerabilities.

• Ciphertext malleability (bit-flipping): in CBC mode, an attacker with access to the data stream can alter specific bits of an encrypted block. When the destination decrypts the payload, that alteration can predictably change the resulting plaintext, such as modifying a digit in an amount, without the algorithm itself detecting that the message was manipulated.
• Padding oracle attacks: older block modes require padding, such as PKCS#7. If the receiver exposes different errors for invalid padding, an incorrect key, or other failures, an attacker can submit automated message variations and use those responses as an oracle to recover sensitive information.

2. The modern solution: AEAD authenticated encryption

PowerBuilder 2025 R2 mitigates these risks by adding native support for AES-GCM (Galois/Counter Mode) and modern asymmetric signing algorithms such as RSA-PSS. AES-GCM belongs to the AEAD family: Authenticated Encryption with Associated Data. This means encryption protects not only message confidentiality, but also produces an authentication label, or Auth Tag, that allows the receiver to verify integrity.

If a single bit of the ciphertext, Auth Tag, or protected data is altered, validation no longer matches and the receiver must reject the payload. In practical terms, AES-GCM combines confidentiality and integrity in one cryptographic operation, reducing the need to manually build and maintain a separate HMAC layer.

3. Secure architecture comparison

Demo Architecture

The demo is intentionally compact. It keeps the whole security workflow visible inside one PowerBuilder window so developers can understand each transition from plain JSON to encrypted payload and back to recovered JSON.

The three panels represent a realistic message exchange:

• JSON Original: the business message created by the sender. The sample uses a fiscal and banking-style JSON document.
• Payload Cifrado (Hex): the transport channel. It contains data_encriptada_hex, auth_tag_hex, and the algorithm name.
• JSON Descifrado: the receiver output after authenticated decryption.

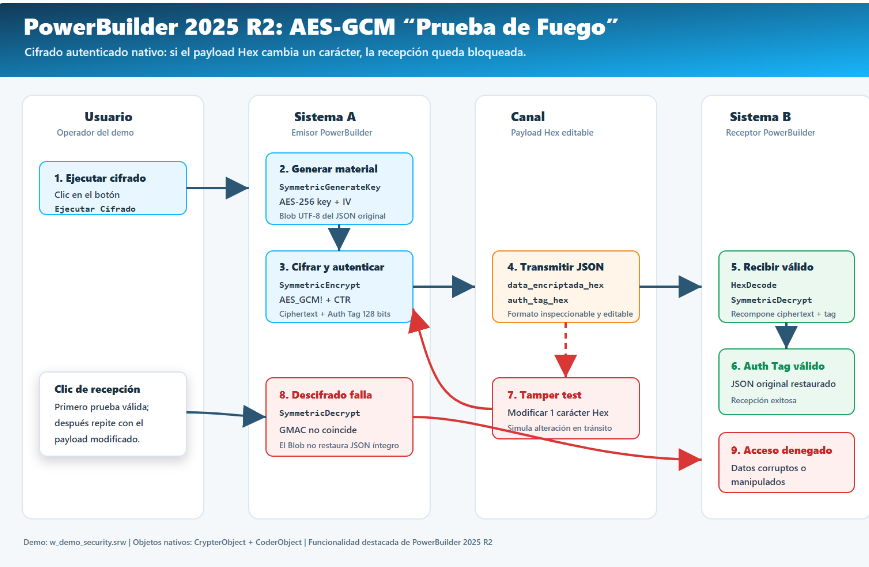

The “Fire Test” Flow

The most important part of the demo is the tamper test. The user changes a single hexadecimal character in the encrypted payload and runs the receiver again. This simulates a corrupted message, a broken integration, or a man-in-the-middle modification.

Step 1: Loading the Business JSON

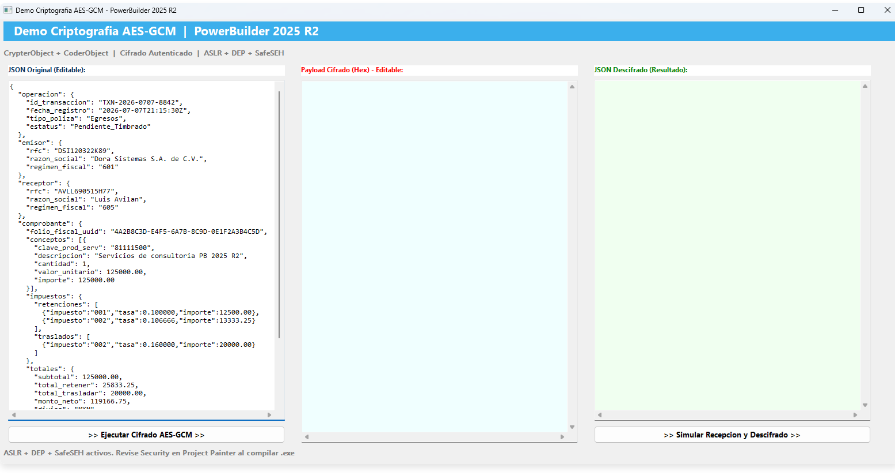

When the window opens, the demo loads a JSON payload into the left panel. The text includes fiscal metadata, issuer and receiver data, tax values, bank information, and a payment method. This matters because encryption demos are more useful when the payload resembles business data instead of a short test string.

event open;
String ls_json

ls_json = '{~r~n' + &
   '  "operacion": {~r~n' + &
   '    "id_transaccion": "TXN-2026-0707-8842",~r~n' + &
   '    "fecha_registro": "2026-07-07T21:15:30Z",~r~n' + &
   '    "tipo_poliza": "Egresos",~r~n' + &
   '    "estatus": "Pendiente_Timbrado"~r~n' + &
   '  }~r~n' + &
   '}'

mle_json_original.Text = ls_json
end event

In the encryption event, the text is converted to a UTF-8 blob:

lb_plain_data = Blob(ls_json_input, EncodingUTF8!)

This detail is important for Spanish and Latin American enterprise applications. Names, descriptions, tax concepts, and addresses may contain accents and special characters. The demo explicitly uses UTF-8 conversion to avoid character corruption during encryption and decryption.

Step 2: Generating Key and IV

The sender generates cryptographic material using CrypterObject. In this demo, the key and IV are stored as instance variables to simulate a shared secret between System A and System B during the same runtime session.

li_rtn = lnv_crypt.SymmetricGenerateKey(AES!, 32, ib_secret_key)
li_rtn = lnv_crypt.SymmetricGenerateKey(AES!, 16, ib_iv)

Step 3: Encrypting with AES-GCM

The central operation is the native PowerBuilder 2025 R2 encryption call. The demo uses AES_GCM! and OperationModeCTR! as required by the implementation used in the project.

lb_encrypted = lnv_crypt.SymmetricEncrypt( &
   AES_GCM!, &
   lb_plain_data, &
   ib_secret_key, &
   OperationModeCTR!, &
   ib_iv)

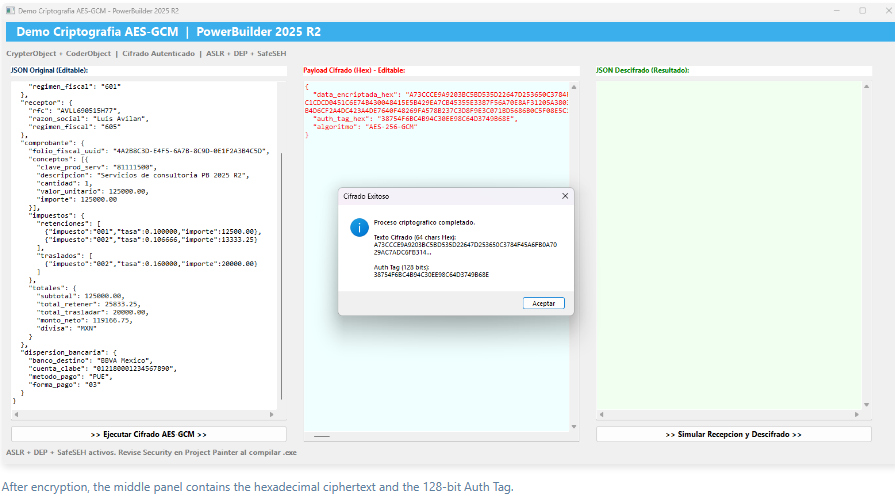

The encrypted blob returned by the operation contains the encrypted data plus the authentication tag. The demo separates the last 16 bytes as the Auth Tag and keeps the remaining bytes as the ciphertext.

lb_auth_tag = BlobMid(lb_encrypted, Len(lb_encrypted) - 15, 16)
lb_cipher_only = BlobMid(lb_encrypted, 1, Len(lb_encrypted) - 16)

ls_cipher_hex = lnv_coder.HexEncode(lb_cipher_only)
ls_tag_hex    = lnv_coder.HexEncode(lb_auth_tag)

Step 4: Building the Transport Payload

The demo deliberately uses JSON as the envelope and hexadecimal text as the payload format. This makes the encrypted data easy to inspect, copy, log in a controlled environment, or transmit through text-oriented channels.

{
  "data_encriptada_hex": "A73CCCE9A9203BC5...",
  "auth_tag_hex": "38754F6BC4B94C30EE98C64D3749B68E",
  "algoritmo": "AES-256-GCM"
}

From an integration perspective, this is a clean contract. System A sends encrypted bytes as hexadecimal, sends the Auth Tag separately, and declares the algorithm. System B can then decode, reassemble, and validate the payload.

Step 5: Receiving, Decoding, and Reassembling

The receiver extracts the two hexadecimal values from the payload, decodes them into blobs, and then rebuilds the full encrypted payload expected by the decrypt operation.

lb_encrypted = lnv_coder.HexDecode(ls_payload_hex)
lb_auth_tag  = lnv_coder.HexDecode(ls_tag_hex)

lb_full_payload = lb_encrypted + lb_auth_tag
lb_decrypted = lnv_crypt.SymmetricDecrypt( &
   AES_GCM!, &
   lb_full_payload, &
   ib_secret_key, &
   OperationModeCTR!, &
   ib_iv)

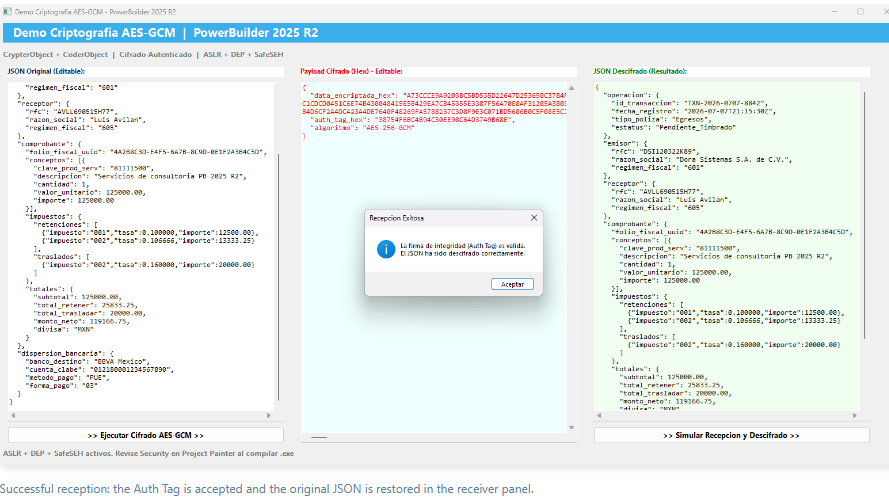

If the encrypted data and the Auth Tag match, the receiver restores the original UTF-8 JSON.

ls_json_recuperado = String(lb_decrypted, EncodingUTF8!)

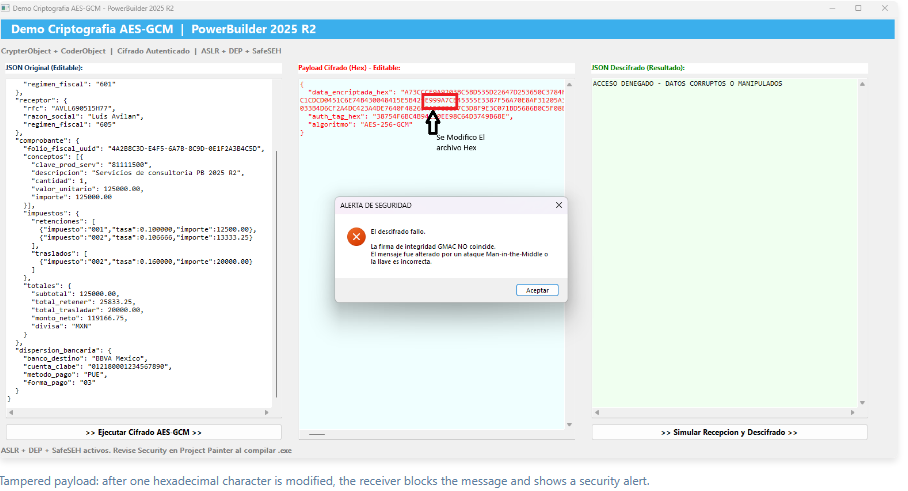

Step 6: Tamper Detection

The fire test is simple and powerful: change one character in data_encriptada_hex and click Simular Recepcion y Descifrado again. A single hexadecimal character represents four bits. That small change is enough to invalidate the relationship between ciphertext and Auth Tag.

If Len(lb_decrypted) > 0 And Right(Trim(ls_json_recuperado), 1) = "}" Then
   mle_json_descifrado.Text = ls_json_recuperado
   MessageBox("Recepcion Exitosa", &
      "La firma de integridad (Auth Tag) es valida." + &
      "~r~nEl JSON ha sido descifrado correctamente.", Information!)
Else
   mle_json_descifrado.Text = "ACCESO DENEGADO - DATOS CORRUPTOS O MANIPULADOS"
   MessageBox("ALERTA DE SEGURIDAD", &
      "El descifrado fallo." + &
      "~r~n~r~nLa firma de integridad GMAC NO coincide.", StopSign!)
End If
