The problem: a log file is not an operations console

PowerServer records controller calls, session creation and destruction, transaction lifecycles, SQL statements, results, and exceptions. The information is real and valuable, but it arrives as chronological text containing multiline JSON blocks. A single operation may span dozens of lines and share identifiers with later operations.

Reading powerserver.log manually means solving several questions at once: Which process belongs to the project? Which port is it listening on? Which file did log4net actually configure? Where does event begin and end? Which session and transaction participated? Is a line a distinct failure or a duplicate summary?

Demo architecture

The window is deliberately thin. Discovery, incremental reading, parsing, and DataWindow management are implemented in separate nonvisual objects.

Discovering a real instance

descubrir_logs_powerserver.ps1 does not maintain a catalog of test projects. It queries active processes through CIM, identifies their listening TCP port, and derives the publish directory from the command line. It then inspects two configuration sources:

1. AppConfig/Applications.json, which identifies the published PowerServer application.
2. Logging/log4net.xml, which resolves the effective RollingFileAppender path.

The result is serialized as UTF-8 TSV. This avoids an extra dependency for a small exchange between PowerShell and PowerBuilder while preserving accented and special characters.

Application | local URL | PID | publish directory | log file
salesdemo_cloud | localhost:16561 | 20784 | ...\ServerAPIs | ...\Logging\logs\powerserver.log

The visual label adds LOG AVAILABLE only when the resolved file exists. Selecting a process therefore does not imply that events are available; the diagnostic area shows the path and explains missing configuration or files.

Configuration required to expose SQL, sessions, and transactions

In the inspected instance, Logging.Development.json enables EnableFileServer, EnableSqlLog, EnableSessionLog, and EnableTransactionLog. The PowerServer level is also set to Debug. Log4net writes UTF-8, appends to the existing file, uses minimal locking, rotates at 5 MB, and retains as many as 100 backups.

"PowerServer": "Debug"
"EnableSqlLog": true
"EnableSessionLog": true
"EnableTransactionLog": true

Incremental UTF-8 reading

The reader retains il_posicion. The initial load can start at zero; later follow operations obtain the content and return the segment beginning at the stored position. If the file becomes smaller because it was truncated or replaced, the position resets rather than remaining out of range.

ls_contenido = of_leer_archivo_utf8(is_ruta_archivo)
If Len(ls_contenido) < il_posicion Then il_posicion = 0
ls_novedades = Mid(ls_contenido, il_posicion + 1)
il_posicion = Len(ls_contenido)

Binary reading followed by EncodingUTF8! conversion avoids reliance on the Windows code page. Parsing accepts both CRLF and LF. This matters because a remaining carriage return may prevent a visually empty line from being treated as empty.

From multiline text to structured events

A timestamp-based start rule separates consecutive events. Following JSON lines remain attached to the header until the next timestamp is found. A RetrieveWithParm result is therefore not split into unrelated rows.

nvo_analizador_logs_ps builds a str_evento_log_ps structure containing date, level, category, session, operation, duration, message, and the original block. The original block is retained because the grid is a summary, while the detail panel must support a complete investigation.

Why “everything is an error” was the wrong interpretation

An early trace repeatedly displayed “The session does not respond (The session does not exist).” The first parser treated the failure block and its summary as equivalent events, and could use result text as though it were the primary operation. The correction separated three concepts:

• Level: comes from the header and represents the emitted severity.
• Category: is derived from the content; a failure in CommitAndCreateTransaction still belongs to the transaction domain.
• Operation: comes from the actual controller method, not from a later generic message.

A row can consequently have level ERROR, category TRANSACTION, and operation CommitAndCreateTransaction. The failure remains visible without losing its technical context.

Correlating a real operation

Validation used activity generated by the running Sales CRM application. The log captured a RetrieveWithParm call for d_address_free with al_addressid=466, followed by a SELECT against Person.Address. The result reported one affected row and ErrorCode = 0.

The same flow later included successful CommitAndCreateTransaction, Disconnect, and DestroySession operations. Session 34268BB0-0E21-451B-8788-4A602AC94E73 and transaction 3CFBC7DD-3AC4-4B41-ACFE-663E35D4C4F0-8 make it possible to follow the sequence without relying only on timestamp proximity.

DataWindow metrics and live follow mode

nvo_gestor_logs_ps inserts every normalized event into d_eventos_logs_ps. The same data set supplies total, SQL, transaction, session, error, and slow-operation counts. Text and category filters operate on loaded data without reparsing the file.

The window's Timer event refreshes every two seconds while follow mode is active. “Pause follow” stops visual ingestion; it does not alter PowerServer logging. Resuming processes the pending segment from the known position. The lower detail pane displays the original block, while CSV export creates an interoperable copy for external analysis.

Reproducible test procedure

1. Start a local PowerServer project and confirm that its Server APIs process is listening on a port.
2. Enable the required categories and file logging in the effective environment configuration.
3. Open the explorer, select Discover, and choose the instance marked as available.
4. Run a query, a persisted update, and navigation that creates or closes a session in the client application.
5. Verify SQL, method, identifiers, and error code in the complete detail block.
6. Pause, generate more activity, and resume to validate incremental delivery.
7. Rotate or truncate the log under controlled conditions and verify position reset before adopting the pattern in production.

Build validation

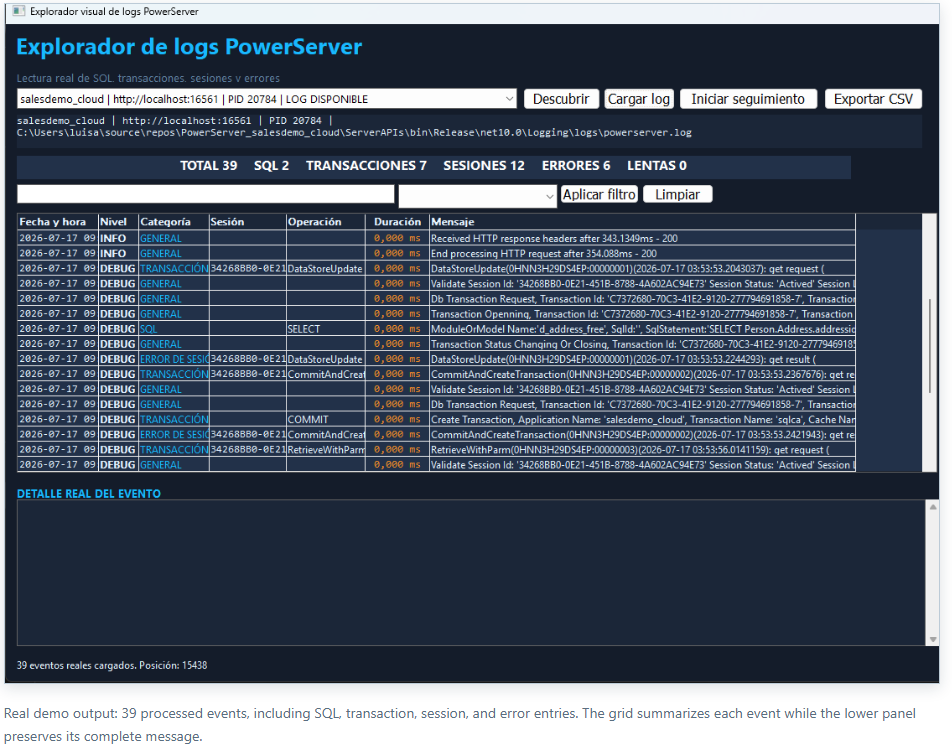

The final ORCA import reported OK for all nine demo artifacts: two structures, the DataWindow, four NVOs, the window, and the application. That validates PowerBuilder syntax and dependencies. The screenshot and the live-log walkthrough provide behavioral evidence, which is separate from a successful compile.

Limits and natural extensions

• Discovery currently targets local processes; remote hosts would require an authenticated agent or API.
• The active file is processed. Numbered log4net backups are not yet merged into a single historical timeline.
• Duration depends on fields emitted by the event; it is not fabricated from unrelated timestamps.
• Future provider formats may require adapting header detection or JSON field names.
• The console is a diagnostic tool, not a replacement for centralized observability, alerting, or retention.

Natural extensions include true byte-offset reading, rotated-file traversal, session aggregates, duration percentiles, alert rules, and authenticated remote collection. The existing separation among discovery, reader, parser, and manager allows those features to be added without turning the window into a monolithic script.

Conclusion

The demo's value is not merely colorizing text. It reconstructs PowerServer's operational context: process, application, method, session, transaction, SQL, result, and error. The console retains traceability to the original block, states its limitations, and works exclusively from events emitted by active projects. This makes it a practical foundation for diagnosing modern PowerBuilder applications without simulated data.

Luis Avilan
