Loading DataWindows from External PBD Files in PowerServer 2025 R2

A practical pattern for distributing reports, queries, and DataWindow layouts independently, loading them at runtime, and updating them without rebuilding the entire PowerBuilder application.

Analyzed demo: Demo_PS_External_Datawindow_Library · Implementation and validation: Luis Avilan · PowerBuilder 2025 R2

The problem this pattern solves

In enterprise applications, reports often change more frequently than the core business logic. Finance requests one more column, operations needs a different filter, a customer requires a branded header, or a regulatory change forces a new layout. If every report adjustment requires rebuilding, publishing, and updating the full application, a small change inherits the complete release cycle.

PowerServer 2025 R2 can load DataWindow objects from external PBL or PBD libraries at runtime. This makes it possible to separate part of the presentation and data-retrieval layer from the main application. Appeon's documentation highlights customized InfoMaker reports, but the same pattern is valuable for query catalogs, customer-specific layouts, regional reports, and optional reporting modules.

What the demo proves

The demo displays one compiled DataWindow and two external DataWindows from ExternalReports\biblioteca_reportes_clientes.pbd in the same window. The user can enable dynamic loading, add the library to the runtime Library List, select an external object, run Retrieve, switch back to the compiled object, and restore the original library list.

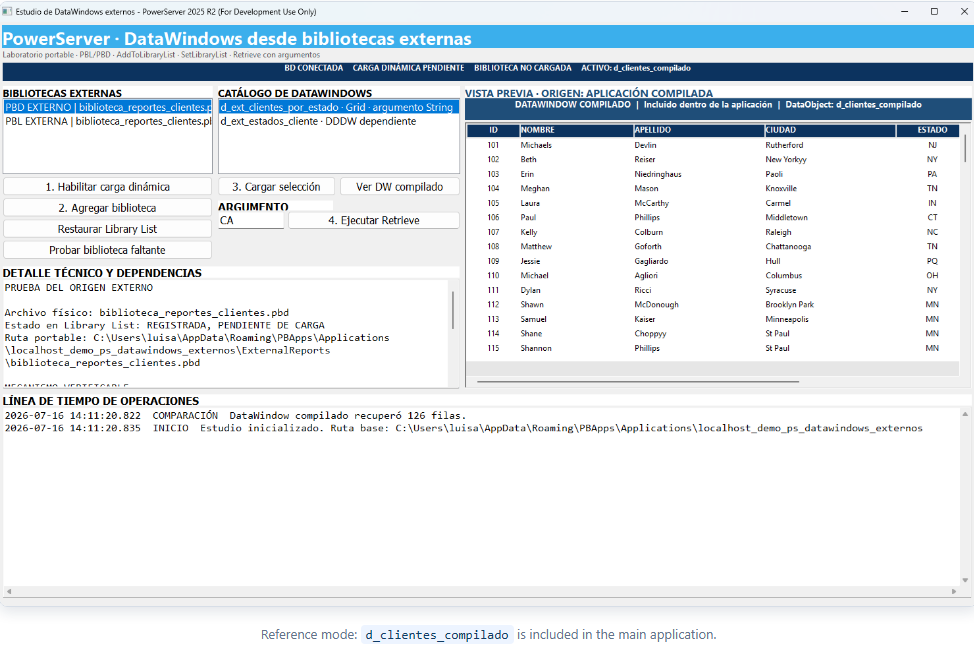

The UI also addresses a practical question: how can a user verify that the displayed object really came from a PBD? A blue banner identifies the compiled DataWindow, while a green banner identifies the external object and displays the physical library name and active DataObject.

Demo architecture

Database used by the demo

The PowerBuilder application connects through the ODBC DSN, while the generated PowerServer API uses a SqlServer connection to PBDemoDB2025. Both compiled and external DataWindows query the same customer table. Therefore, the demo isolates the DataWindow object's origin rather than comparing different data sources.

Runtime loading sequence

1. Enable dynamic loading before changing the Library List

Return CloudAppSet("EnableDynamicDWLoading", "true")

The option must be enabled before calling AddToLibraryList or SetLibraryList. Appeon documents that externally loaded DataWindows use the dynamic DataWindow mechanism and do not rely on compiled C# models.

2. Resolve paths without depending on one workstation

ls_actual = of_quitar_separador_final(GetCurrentDirectory())
If of_archivo_existe(ls_actual + "\demo_ps_external_datawindow_library.pbt") Then
Return ls_actual
End If

Return of_obtener_ruta_base() + "\ExternalReports"

The PBD is resolved relative to the demo or installed PowerServer application. The project can therefore be moved, extracted on another PC, or packaged as a ZIP without editing hard-coded paths.

3. Validate the library before loading it

If Not of_extension_valida(as_ruta) Then Return -10
If Not of_archivo_existe(as_ruta) Then Return -11
Return AddToLibraryList(as_ruta)

The service rejects unsupported extensions and missing files. It then uses LibraryDirectory to enumerate DataWindows and confirm that the selected object is physically present in the library.

4. Assign the DataObject before associating the transaction

dw_vista_previa.Reset()
dw_vista_previa.DataObject = as_datawindow
If Lower(dw_vista_previa.DataObject) <> Lower(as_datawindow) Then Return -14

li_resultado = dw_vista_previa.SetTransObject(SQLCA)
If li_resultado <> 1 Then Return -13

The order matters. The control must own a valid DataObject before the transaction is associated. This prevents the “Database transaction information not available” error and avoids running Retrieve against an empty control.

5. Apply compatible dynamic SQL and retrieve the data

ls_sql = "SELECT customer.id, customer.fname, customer.lname, " + &
"customer.city, customer.state, customer.company_name " + &
"FROM customer WHERE customer.state = '" + ls_estado + "' " + &
"ORDER BY customer.lname"

li_resultado = dw_vista_previa.SetSQLSelect(ls_sql)
If li_resultado <> 1 Then Return -3
ll_filas = dw_vista_previa.Retrieve()

The demo applies SetSQLSelect before the external Retrieve. This keeps the query explicit and controlled and avoids depending on a PBSELECT expression that may not be parsed correctly by the dynamic server-side flow.

PowerServer and the .NET API

The client does not run in isolation. PowerServer generates a .NET solution with ServerAPIs, configures the database cache, and publishes the Installable Cloud App files. The external PBD and bibliotecas.ini are included as external project files.

Real-world use cases

Advantages

• Reduces deployment scope when only a DataWindow changes.
• Enables an extensible catalog of reports and queries.
• Supports customer-specific variants without forking the entire application.
• Keeps loading logic in an NVO and visual events short.
• Verifies library contents through LibraryDirectory.
• Provides traceability through UTF-8 logs and visible status indicators.
• Supports portable packaging with the Installable Cloud App.

Production considerations

• Version every library and keep the previous file available for rollback.
• Validate names, columns, data types, arguments, tables, and permissions before release.
• Do not break contracts consumed by the main window scripts without coordinating an application update.
• Test dependencies such as Child DataWindows, Composite, Report, and DropDownDataWindows.
• Record the hash, version, date, and owner of every deployed PBD.
• Use HTTPS, secure database configuration, and least-privilege access in production.
• Remember that the documented enhancement supports external DataWindow objects; it does not turn every external PowerBuilder object into a supported dynamic plug-in.

How to test the demo

1. Extract the complete project and keep ExternalReports next to the application.
2. Verify that Microsoft SQL Server exposes the PBDemoDB2025 database on port 1433 and that the customer table exists.
3. Create the PB SQLServer V2025R2 ODBC DSN and point it to that database.
4. Open Demo_PS_External_Datawindow_Library.pbw in PowerBuilder 2025 R2.
5. Run PowerServer\generar_proyecto_powerserver.ps1, followed by PowerServer\compilar_powerserver.ps1.

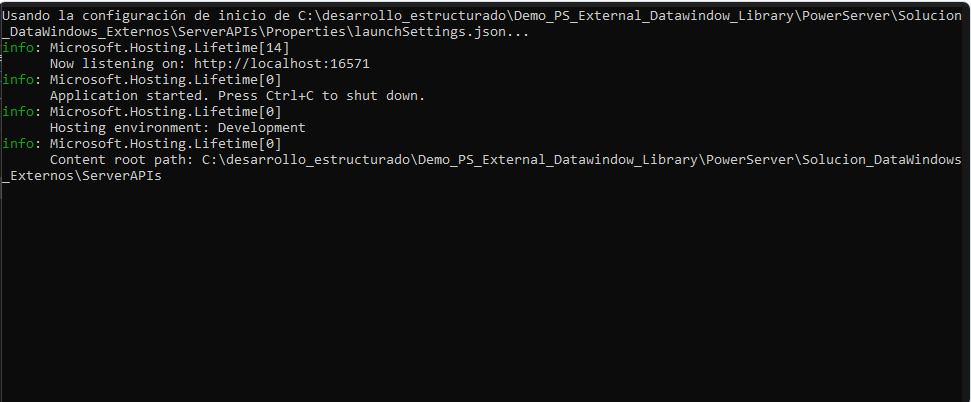

6. Start the PowerServer API and launch the Installable Cloud App.
7. Observe the blue banner for d_clientes_compilado.
8. Click 1. Habilitar carga dinámica.
9. Select PBD EXTERNO and click 2. Agregar biblioteca.
10. Select d_ext_clientes_por_estado and click 3. Cargar selección.

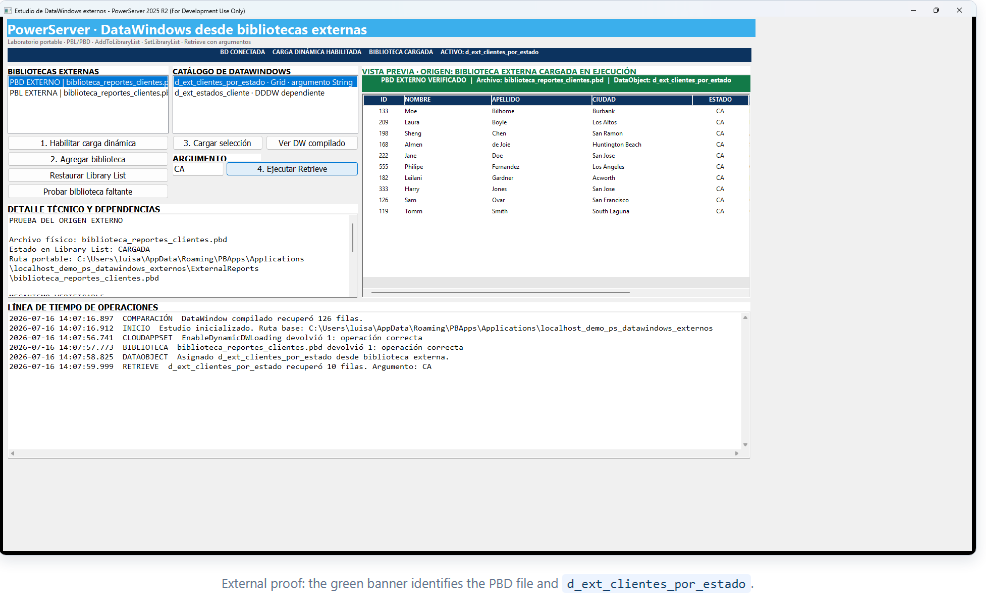

11. Enter CA and execute Retrieve. The grid should show 10 rows and the banner should turn green.
12. Use Ver DW compilado to return to the 126-row baseline.
13. Use Restaurar Library List to remove the external library and complete the loading lifecycle.

Recommended independence test

To prove that the PBD is not merely a copied asset, perform a second controlled test: change the title, color, or one column in d_ext_clientes_por_estado inside the external PBL, regenerate only biblioteca_reportes_clientes.pbd, replace the file, and load it again. If the visual change appears without rebuilding the main PBL, the independent deployment model has been demonstrated directly.

Conclusion

Loading DataWindows from external PBD files turns reports into deployable and versionable resources. The value is not limited to calling AddToLibraryList. A production-ready approach also requires portable paths, content validation, correct transaction association, SQL compatible with the dynamic mechanism, auditing, visible evidence, and a rollback strategy.

This demo brings those pieces together in a reproducible PowerServer 2025 R2 laboratory and provides a concrete path toward smaller deployments, controlled customization, and a more modular PowerBuilder application.

Luis Avilan
