What detecting an active PowerServer project means

In this version, detection does not mean blindly scanning every process or folder on the machine. The application maintains a catalog of configured projects and tests the selected project with a real request to /api/Session/GetSessionCount. When the server returns an HTTP 2xx response, the project is considered administrable and the console proceeds with LoadAll.

This design supports local and remote instances as long as their URLs are reachable. Project selection prevents cross-contamination: the window pauses refresh, clears the previous DataWindows and metrics, switches the HTTP URL and authorization, tests the new API, and only then loads its sessions.

Demo architecture

Project catalog and selection

n_cst_ps_server_manager uses parallel arrays for project names, environments, URLs, and tokens. of_agregar_proyecto prevents duplicate URLs, of_actualizar_proyecto edits an entry, and of_seleccionar_proyecto disconnects the previous context before configuring the HTTP client for the new instance.

The selector displays the three values an operator needs to avoid targeting the wrong server:

Project name | Environment | Base URL

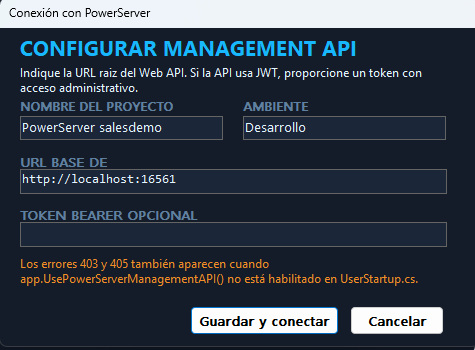

The configuration window accepts an optional Bearer token. If the user enters a token without the scheme, the manager automatically prefixes it with Bearer before creating the Authorization header.

Communicating with the Management APIs

The HTTP client creates every route from the base URL and the /api/Session prefix. Each request sets Accept: application/json, UTF-8 content, a timeout, and Bearer authorization when required.

Every response is captured in str_ps_api_result: operation, endpoint, success flag, HTTP status, body, user-facing error, technical detail, and duration. The window uses the same structure for visual status and auditing.

Server-side enablement

The PowerServer solution being administered must register the Management API middleware in UserStartup.cs:

app.UsePowerServerManagementAPI();

From JSON to a DataWindow

n_cst_ps_session_admin.of_cargar_todas_sesiones calls LoadAll and passes the body to JSONParser. PowerServer 2025 R2 returns fields such as sessionid, application, sessionstate, ipaddress, serveripaddress, createtime, and lastvisittime. The parser maps them into an array of str_ps_active_session structures.

of_actualizar_sesiones then resets the DataWindow and inserts one row per JSON item. The full Session ID remains available for administrative operations, while a shortened value improves readability.

istr_sesiones[i].session_id = lnv_json.GetItemString(ll_item, "sessionid")
istr_sesiones[i].application_name = lnv_json.GetItemString(ll_item, "application")
istr_sesiones[i].start_datetime = ldt_start
istr_sesiones[i].last_activity_datetime = ldt_last

Classification and metrics

The API supplies state and timestamps, but the console calculates its own operational classification. Thresholds come from n_cst_ps_session_config and are applied in this order:

1. NEW: total duration is below the initial threshold.
2. LONG-RUNNING: duration exceeds the configured hour limit.
3. CRITICAL: inactivity exceeds the critical threshold.
4. IDLE: inactivity exceeds the warning threshold.
5. ACTIVE: any other session with normal activity.

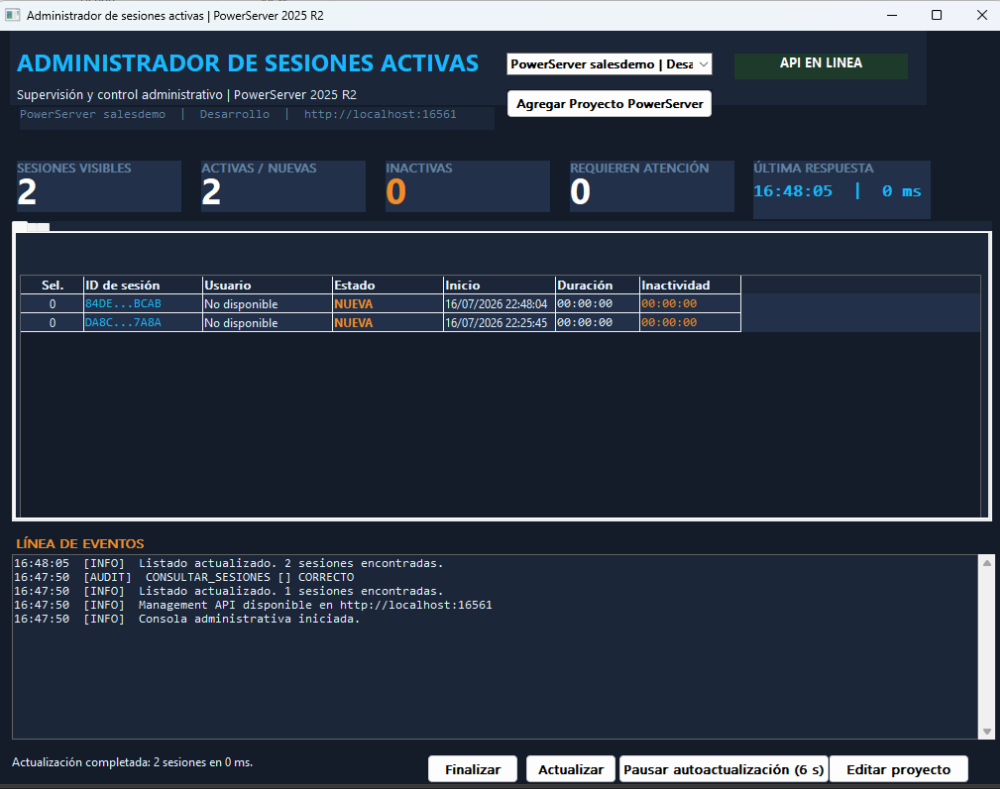

The window scans the DataWindow to update visible sessions, active or new sessions, idle sessions, and sessions requiring attention. It also inserts a consolidated row into d_ps_session_summary with latency, last refresh time, and server status.

Automatic refresh without overlapping requests

n_cst_ps_refresh_manager owns the interval and triggers refresh processing in the window. The ib_cargando flag prevents a manual refresh and a timer refresh from modifying the DataWindow simultaneously. Sensitive buttons are disabled during the request; metrics, status, audit, and the event timeline are updated when it completes.

When the operator changes projects, refresh is paused and the previous project's data is cleared. Countdown processing resumes only after the new connection has been completed. Sessions from one instance therefore cannot remain visible under another project's label.

Controlled session termination

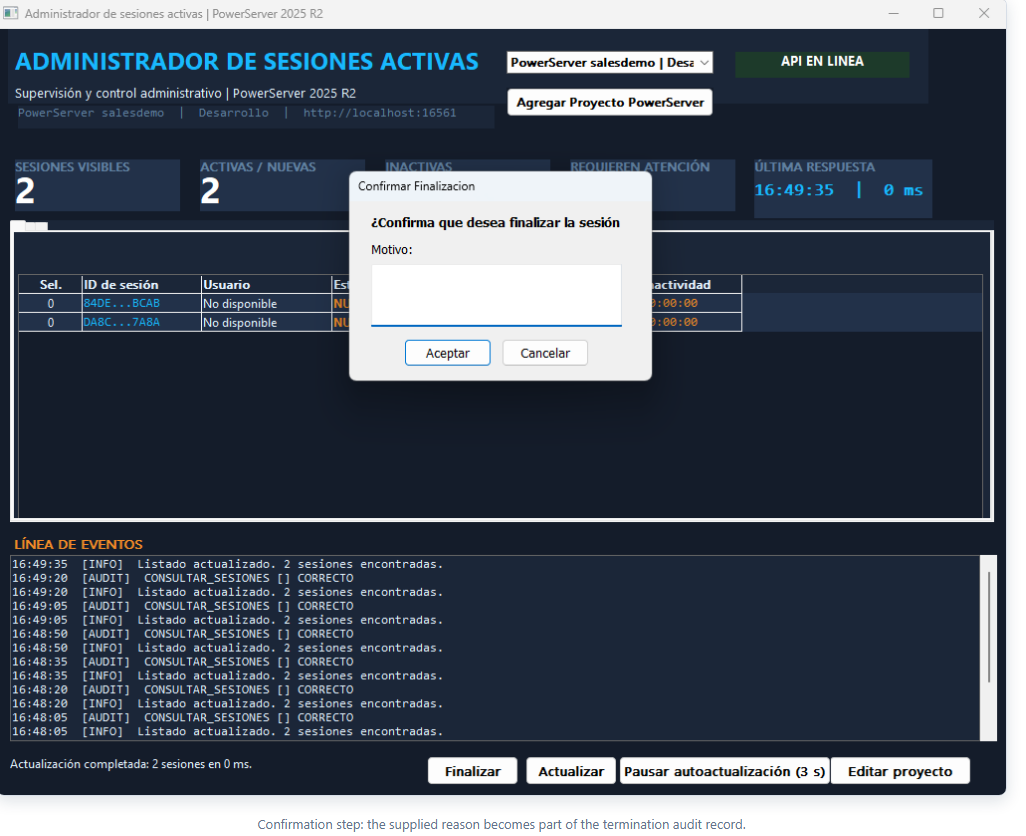

The destructive operation does not execute directly from a row click. The window requires a selected session, opens w_ps_kill_confirmation, and requires a reason. Only then does it send POST KillById/{sessionId}.

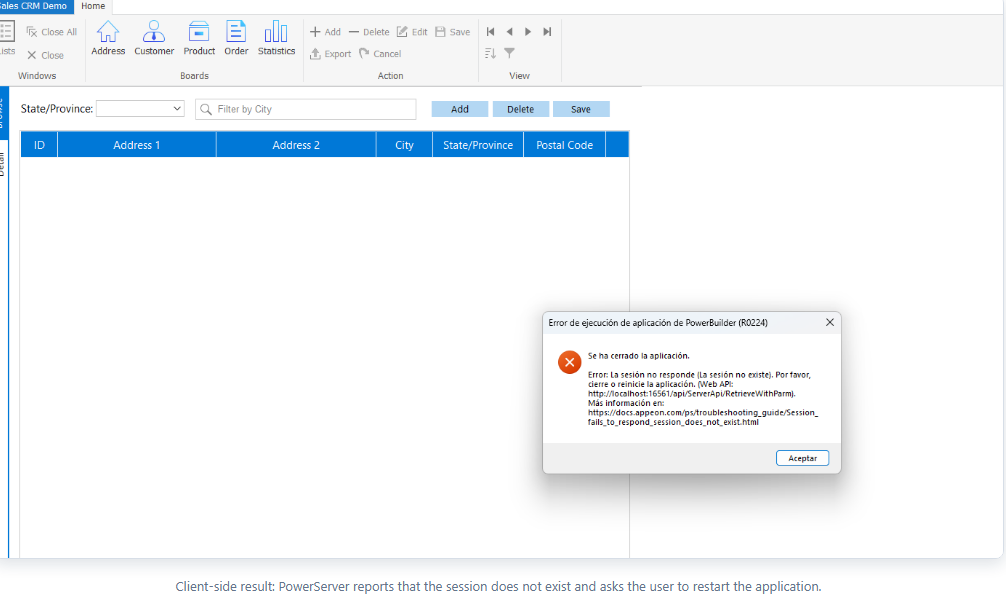

If the terminated session still belongs to a running client, that client's next server request fails because the server no longer recognizes its context. The following screenshot proves that the operation was not merely a visual change in the administration console.

Audit and traceability

Every query and termination creates a row in the internal DataStore managed by n_cst_ps_session_audit_service. A record includes timestamp, administrator, operation, Session ID, server, environment, reason, HTTP status, result, error, and response time. The event timeline summarizes the same workflow chronologically.

The separation is intentional: the logger supports immediate troubleshooting, while the DataStore preserves structured fields for the administrative view and future persistence or export features.

End-to-end demo procedure

1. Enable app.UsePowerServerManagementAPI() in the PowerServer solution, rebuild it, and start ServerAPIs.
2. Start a PowerServer client application to create at least one session.
3. Run Demo_PS_Active_Sesion_Manager.
4. Add or edit the project name, environment, URL, and token when required.
5. Select the project and confirm the API ONLINE state.
6. Verify that GetSessionCount matches the number of rows returned by LoadAll.
7. Test manual and automatic refresh.
8. Review the technical summary and audit views.
9. Select a session, click Terminate, enter a reason, and confirm.
10. Verify that the session disappears from the console and that the client reports a missing session.

Error handling

Production considerations

• Expose the Management API only through controlled administrative networks.
• Use HTTPS and short-lived tokens or an identity provider.
• Authorize operations separately; reading sessions and terminating them should not necessarily require the same role.
• Persist audit records outside memory when regulatory traceability is required.
• Never write tokens or secrets to messages, files, or screenshots.
• Convert UTC timestamps to the operator's time zone.
• Allow different classification thresholds per project and environment.
• Protect KillById against selection mistakes and accidental bulk termination.

Conclusion

The demo provides much more than a list of Session IDs. It establishes an administrative context per project, verifies that the selected API is actually available, transforms JSON into PowerBuilder structures and DataWindows, applies operational rules, prevents concurrent refreshes, and records each intervention.

The same pattern can evolve into an enterprise console with automatic discovery, persistent catalogs, centralized authentication, durable auditing, and multi-server monitoring. The current design already separates the user interface, HTTP transport, project management, session logic, classification, and traceability.

 Luis Avilan
