A modern MessageBox across the entire application, without rewriting its screens

Luis Avilan
CODE AUTHOR
Posts: 31
 2 weeks 6 days ago #685 by Luis Avilan
Luis Avilan created the code: A modern MessageBox across the entire application, without rewriting its screens

A modern MessageBox across the entire application, without rewriting its screens

How to overlay a compatible implementation on top of existing MessageBox calls and modernize a finished PowerBuilder application in a natural, transparent way.



The goal is not to search for and replace hundreds of calls. The overlay preserves every existing MessageBox(...) expression and changes the function that handles it when the application is linked.

The challenge inside a mature application

A PowerBuilder application that has evolved for years may contain MessageBox calls in windows, menus, DataWindows, UserObjects, and NVOs. Editing each call creates repetitive work and unnecessary risk: a button combination may change, a return code may be lost, or a proven condition may be altered.

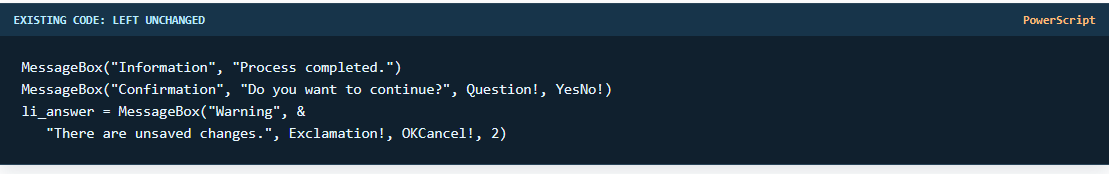

This framework avoids that large-scale migration. The application keeps statements such as:





Result: after integrating the overlay and running a Full Build, those same lines open w_mensaje_moderno. Their events, signatures, and subsequent conditions do not need to be edited.



What overlay means in this project

The overlay is a compatibility layer implemented by the global object messagebox.srf. It declares the same name and parameter combinations used by the standard MessageBox: two arguments; title, text, and icon; icon and buttons; and the complete signature with a default button.

When the application objects are rebuilt, PowerBuilder resolves their calls against these global functions available in the target. The new function receives exactly the information that previously went to the standard dialog, translates it into a request, and delegates presentation to the framework.

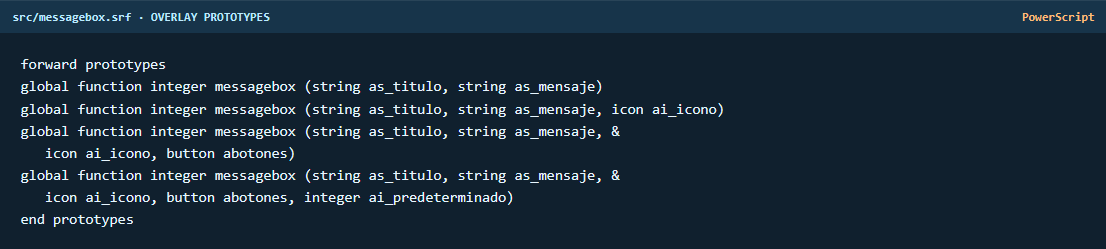

Step 1: reproduce the public signatures

Transparency begins with the prototypes. Consumer code continues to compile because the function name, data types, and argument order match the usual call forms.





The shorter overloads converge on the complete implementation. This avoids duplicated decisions and keeps one path for icons, buttons, and the default response.

Step 2: translate native types without changing the contract

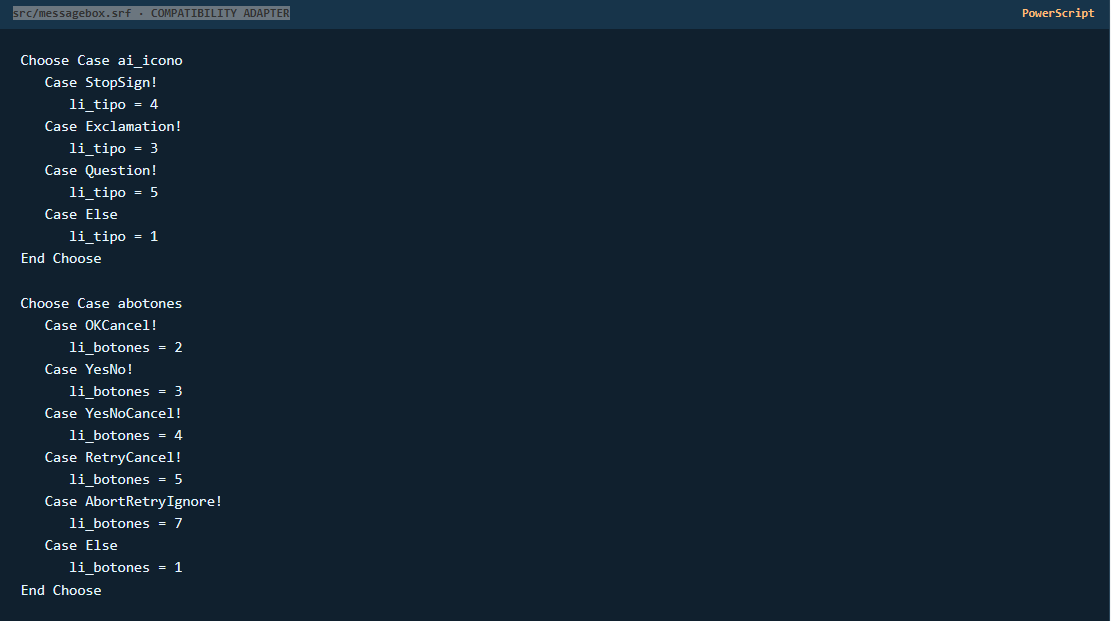

The complete signature maps the native Icon and Button enumerations to internal values. For example, Question! becomes the question category and YesNoCancel! becomes a three-button layout. The requested default button is carried in the same request.

src/messagebox.srf · COMPATIBILITY ADAPTER

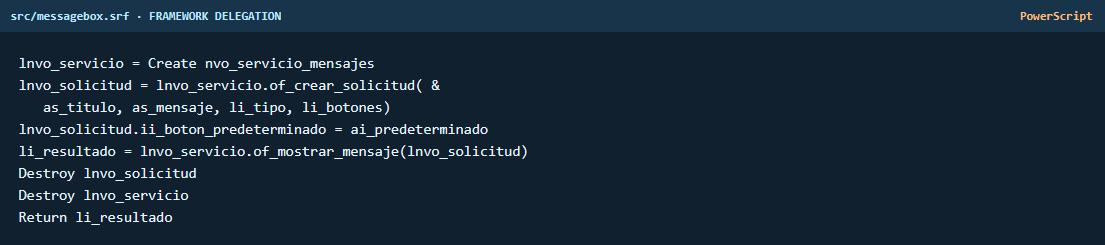

The overlay then creates the service, builds a normalized request, and returns an integer. From the original event's point of view, nothing has changed.



Step 3: separate the request, service, and window

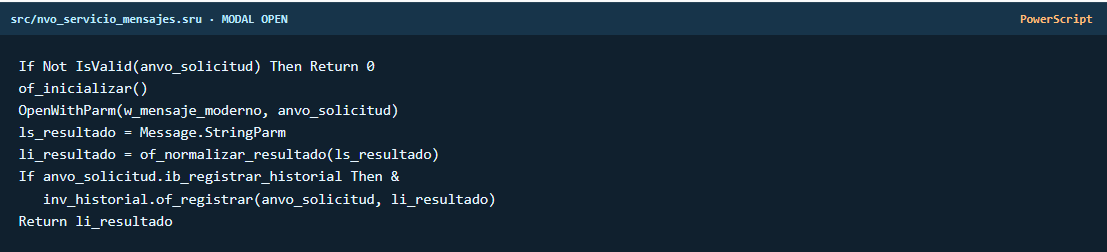

nvo_solicitud_mensaje carries the title, text, category, buttons, technical details, copy option, countdown, and history flag. nvo_servicio_mensajes opens the modal window through OpenWithParm; the window retrieves the object from Message.PowerObjectParm.





 The modern window configures text, icon, theme, and buttons from the request. When the user responds, it calls CloseWithReturn. The service normalizes the returned text and hands the legacy code the same integer it already expects.









Step 4: adopt the active PowerBuilder theme

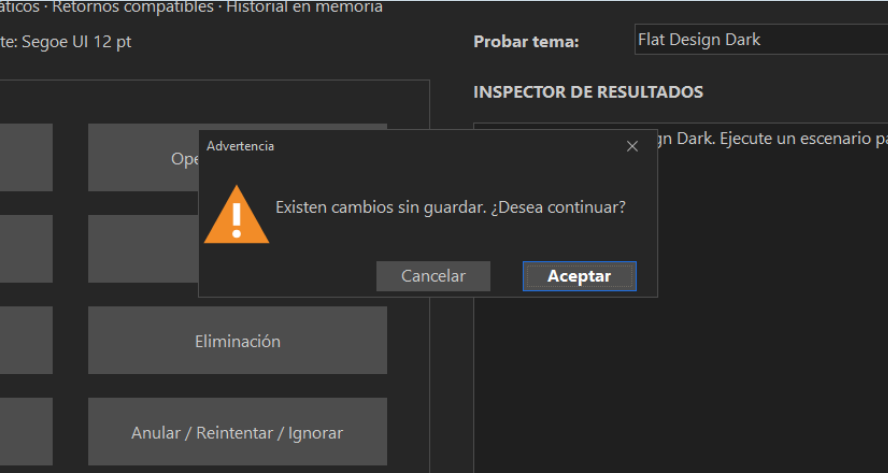

nvo_gestor_temas calls GetTheme() and derives a light or dark palette. The window applies its background, text, accent, and iconography every time it opens. The message feels native to the application because it responds to the theme that is already active instead of imposing a fixed appearance.

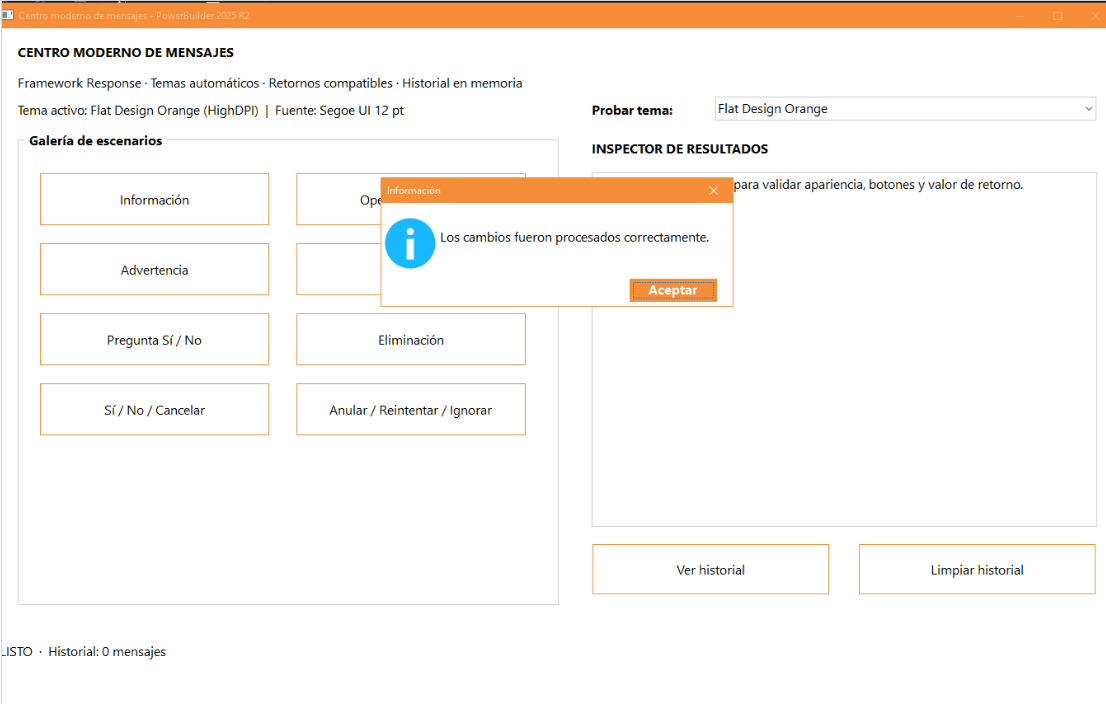

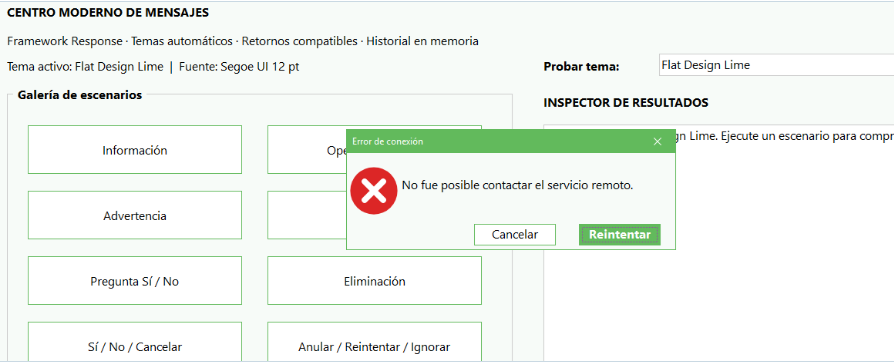

Appearance

Light or dark palette, theme color, Segoe UI typography, and an SVG icon for each category.

Behavior

Default button, Enter, Escape, modal return value, and the standard Windows notification sound.

Services

In-memory history, technical details, clipboard copy, and an optional countdown.





Step 5: integrate the overlay into an existing application

  1. Import messagebox.srf and its supporting objects: nvo_solicitud_mensaje, nvo_respuesta_mensaje, nvo_servicio_mensajes, nvo_gestor_temas, nvo_gestor_historial, u_icono_mensaje, and w_mensaje_moderno.
  2. Store them in a target PBL or in a new PBL included in the LibList. The global function must be visible while every call is resolved.
  3. Keep recursos/svg and theme directly under the demo root. Absolute paths are built at runtime with GetCurrentDirectory(); there are no machine-specific paths or parent-folder fallbacks.
  4. Run a Full Build. This recompiles the consumer objects and links their existing calls to the overlay's global function.
  5. Test every combination used by the application: OK!, OKCancel!, YesNo!, YesNoCancel!, RetryCancel!, and AbortRetryIgnore!, including default-button variants.

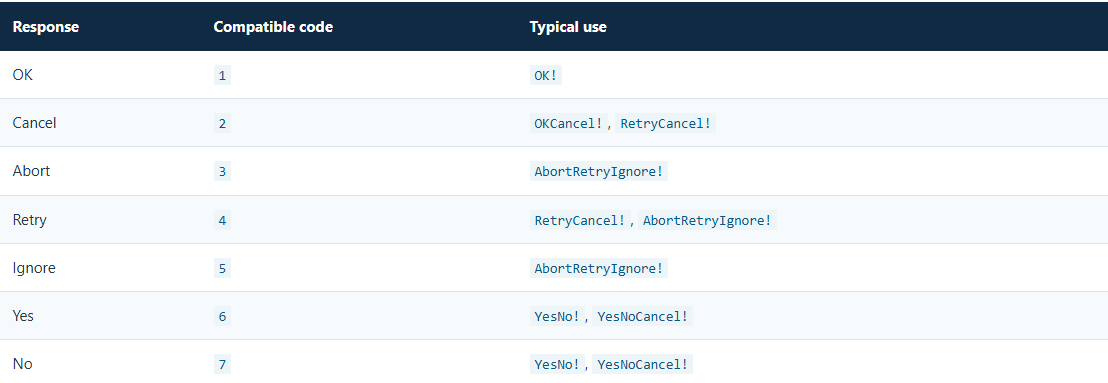

  6. Validate every flow that compares the numeric result. Visual compatibility is not enough: subsequent decisions must still receive 1, 2, 3, 4, 5, 6, or 7 as appropriate.
Important: “no programming changes” means no changes to consumer calls. Integration still requires importing the framework, adding its PBL to the target, deploying its resources, and running a Full Build.
Portable structure: PowerBuilder opens the PBW, PBT, and PBL directly from the root directory. The exports under src are development backups and are not read at runtime. The demo's only file dependencies are root\recursos\svg\file.svg and root\theme\theme_name.

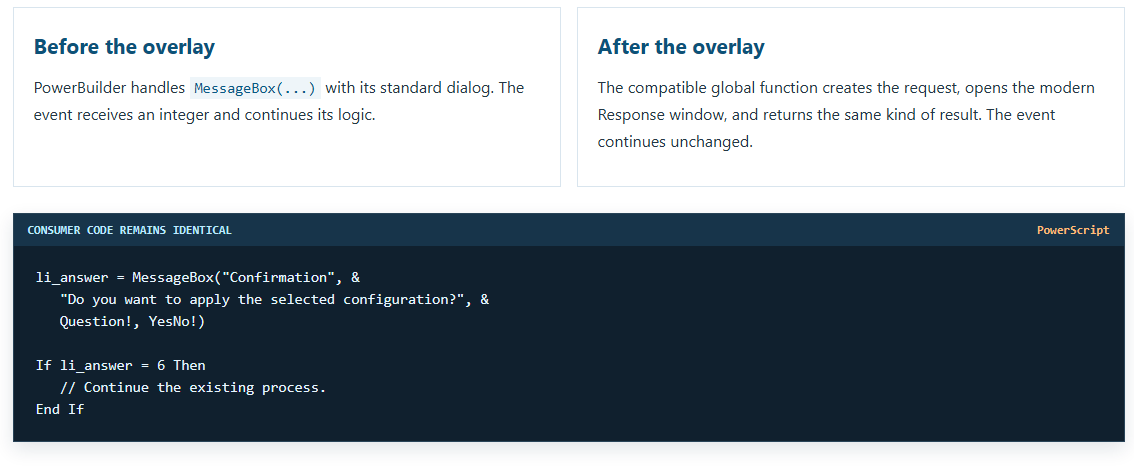

Before and after, with an untouched event

Actual scope and limitations

  • The overlay covers the signatures declared in messagebox.srf. Inventory any additional variants before the Full Build.
  • It intercepts PowerScript calls resolved while the target is compiled.
  • It does not replace dialogs created internally by the Runtime, Windows, DLLs, ActiveX, COM, database drivers, or third-party components.
  • The SVG resources must be deployed; sound uses the Windows MessageBeep API and requires no audio files.
  • Testing should cover light, dark, and High DPI themes, as well as keyboard input, the window close button, and return codes.

Conclusion

The safest modernization is not always the one that rewrites the most code. In this framework, a compatible global function acts as an overlay, preserves the MessageBox contract, and routes presentation to a modern Response window. The result is an application-wide upgrade: automatic themes, SVG icons, compatible return values, history, details, and sound, while existing windows and events remain untouched.

The key is to combine three simple ideas: the same public signatures, one central service, and a Full Build that relinks the entire application. A finished system can then adopt a modern visual experience without turning the migration into a manual search through hundreds of calls.

Luis Avilan
