PowerBuilder 2025 R2 technical article

Building a bidirectional WebBrowser bridge in PowerBuilder

This demo shows how a PowerBuilder window can host a modern HTML interface inside the WebBrowser control, receive commands from JavaScript, execute native PowerScript logic, and push results back into the page through WebView2.

The project combines w_demo_interop, interop.html, w_auxiliar, f_global_demo, and n_v_objeto_demo to demonstrate communication from HTML to PowerBuilder and from PowerBuilder back to HTML.

Demo architecture

HTML card click
-> enviarComando()
-> window.chrome.webview.postMessage(JSON)
-> wb_1.WebMessageReceived(uri, isJson, webmessage)
-> PowerScript command dispatcher
-> native PB action, SQL query, global function, window, or NVO
-> wb_1.EvaluateJavascriptAsync("javascriptFunction(...)")
-> DOM update inside interop.html

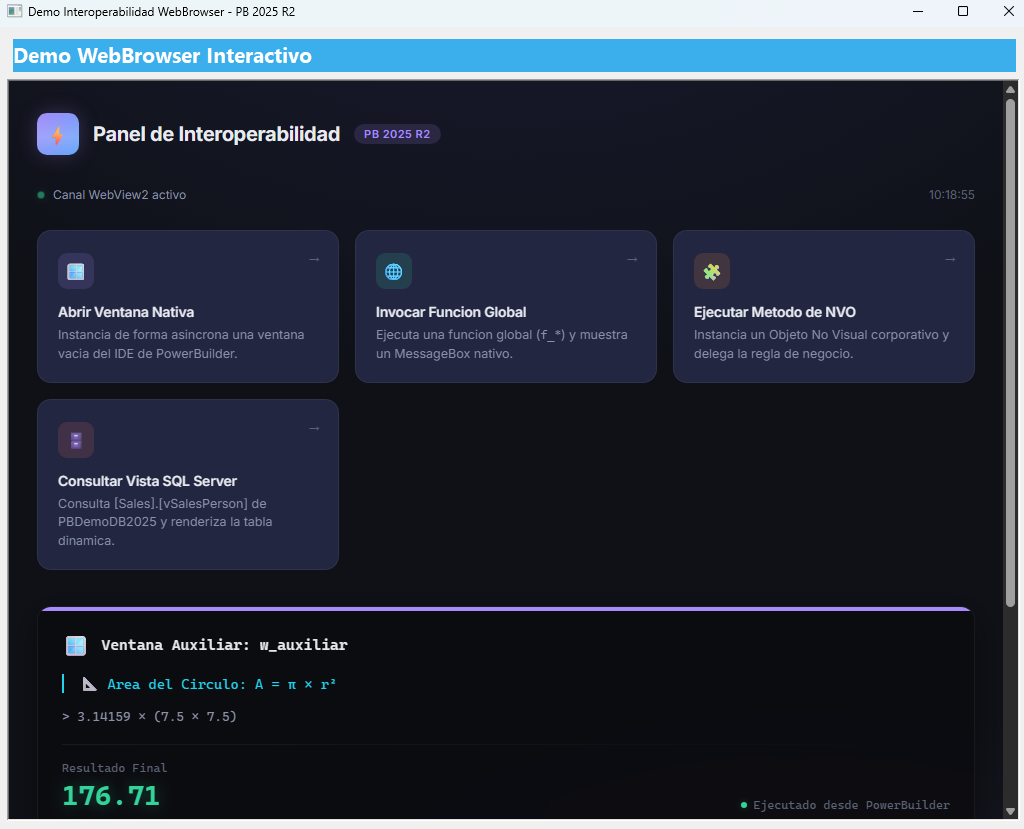

The browser page is not a static report. It acts as a command surface. Each card in interop.html creates a JSON payload with an action key, an optional object name, a client label, and a timestamp.

The WebBrowser control

The main PowerBuilder window, w_demo_interop, owns a WebBrowser control named wb_1. The control is the boundary between the native PowerBuilder runtime and the HTML5 interface rendered by Chromium WebView2.

HTML to PowerBuilder

The outbound JavaScript function is enviarComando(tipoAccion, parametroObjeto). It builds a payload and sends it to PowerBuilder only when the WebView2 channel is available.

var payload = {
accion:  tipoAccion,
objeto:  parametroObjeto,
cliente: "Navegador Chromium PB",
ts:      new Date().toISOString()
};

window.chrome.webview.postMessage(JSON.stringify(payload));

This design keeps the HTML layer clean. The page does not know how to open a PowerBuilder window or query SQL Server; it only sends intent through a small JSON contract.

PowerBuilder dispatcher

In wb_1.WebMessageReceived, PowerBuilder reads webmessage, parses it with JsonParser, extracts accion and objeto, and routes the command with a Choose Case block.

lnv_json = Create JsonParser
lnv_json.LoadString(ls_json_crudo)
ll_root = lnv_json.GetRootItem()

ls_accion = lnv_json.GetItemString(ll_root, "accion")
ls_objeto = lnv_json.GetItemString(ll_root, "objeto")

Choose Case ls_accion
Case "ABRIR_VENTANA"
Case "LLAMAR_FUNCION_GLOBAL"
Case "LLAMAR_NVO"
Case "CONSULTAR_VISTA_SQL"
End Choose

Object communication matrix

PowerBuilder to HTML

The return path uses EvaluateJavascriptAsync(). Instead of writing files or refreshing the whole page, PowerBuilder directly invokes public JavaScript functions already defined in interop.html.

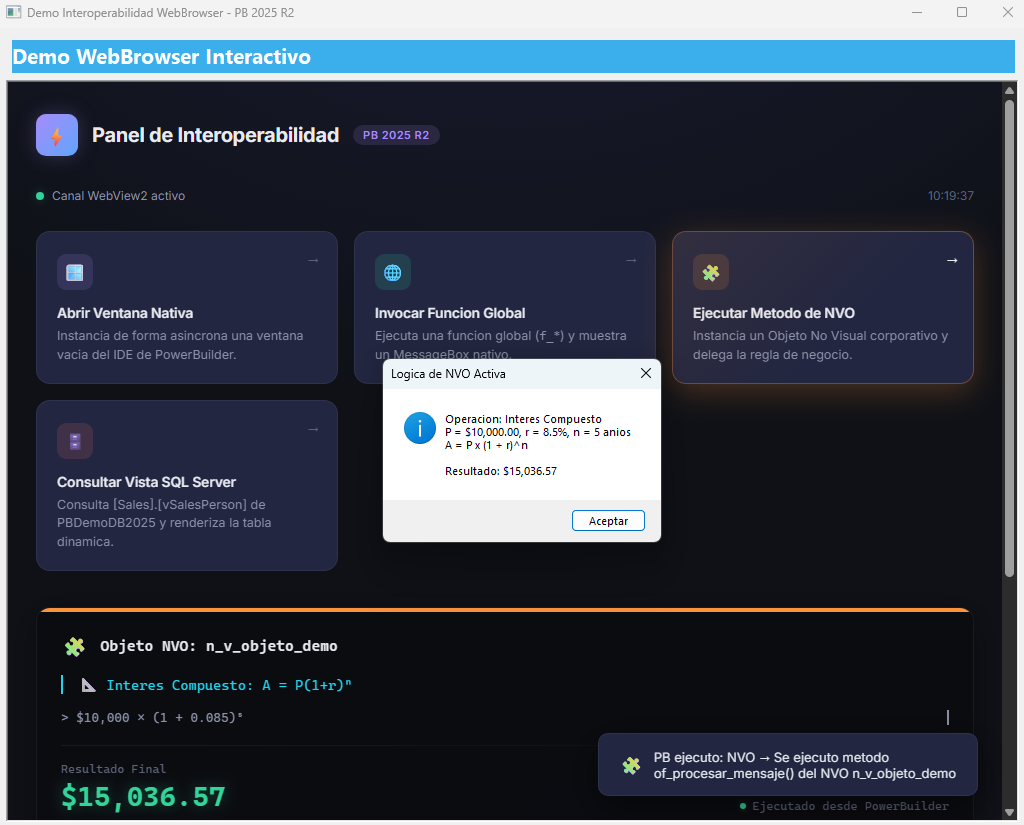

wb_1.EvaluateJavascriptAsync(
"mostrarResultadoOperacion('LLAMAR_NVO', 'Objeto NVO: n_v_objeto_demo', " +
"'Interés compuesto: A = P(1+r)^n', '> $10,000 x (1 + 0.085)^5', " +
"'$" + String(ld_resultado, "#,##0.00") + "')"
)

wb_1.EvaluateJavascriptAsync(
"registrarEjecucion('LLAMAR_NVO', 'Se ejecutó el método of_procesar_mensaje() del NVO n_v_objeto_demo')"
)

The HTML page exposes three important inbound functions: mostrarResultadoOperacion() for mathematical results, registrarEjecucion() for the activity log, and renderizarTablaVista() for SQL rows.

SQL round trip

The SQL action demonstrates a complete round trip: HTML command, PowerBuilder event, SQL Server cursor, JSON generation, JavaScript injection, and DOM rendering.

Why this pattern matters

This pattern lets PowerBuilder keep ownership of business logic, database access, windows, and NVOs, while HTML provides a modern and animated user experience. The bridge is explicit, testable, and based on JSON messages.

Production notes

• Keep the JSON contract stable. New cards should add new action names, not hidden side effects.
• Escape JavaScript strings carefully when injecting values with EvaluateJavascriptAsync(), especially when text can include quotes or special characters.
• The demo uses ODBC DSN PB SQLServer V2025R2 and database PBDemoDB2025.

Conclusion

The demo is a compact example of hybrid PowerBuilder development: WebBrowser for the interface, PowerScript for orchestration, native objects for business behavior, and JSON as the transport layer between both worlds.

Luis Avilan
