One of the new features added to PowerBuilder 2017 R2 is support for REST web services.  This feature isn't 100% complete, as additional REST functionality is planned for 2017 R3.  There's still a lot in the R2 release to look at though.

To make things simple for the demo, we're going to use a online REST web service called JSONPlaceHolder..  The service doesn't require creating an account or user authentication.  While the GET (retrieve) methods are fully functional the POST ( insert ), PUT/PATCH ( update ) and DELETE (delete) methods are placeholders.  They return result codes or in the case of POST the id value of the inserted row, but they don't actually modify the data.

Note that while REST web services can return data in any internet mime encodable format, the vast majority of them use JSON  and JSON is the only data format supported by the REST client object in PowerBuilder 2017.

RESTClient

The first thing we'll look at is the new RESTClient.  It's the primary mechanism to get the DataWindow to use a REST web service.  Right now it only supports Retrieve.  Support for update operations is planned for R3.  Note that in order to use a DataWindow to display data from a REST web service the data set it returns will need to be a simple array.  More complex nested structures would still need to be handled through the techniques we'll cover later in this article.

For this sample, we're going to pull the list of posts from the JSONPlaceHolder site.  The first thing we're going to need to do is create an external DataWindow object that has columns that match the data element names returned by the service.  For posts, JSONPalceHolder returns data like this:

 {
  "userId": 1,
  "id": 1,
  "title": "sunt aut facere repellat provident occaecati excepturi optio reprehenderit",
  "body": "quia et suscipit\nsuscipit recusandae consequuntur expedita et cum\nreprehenderit molestiae ut ut quas totam\nnostrum rerum est autem sunt rem eveniet architecto"
 }

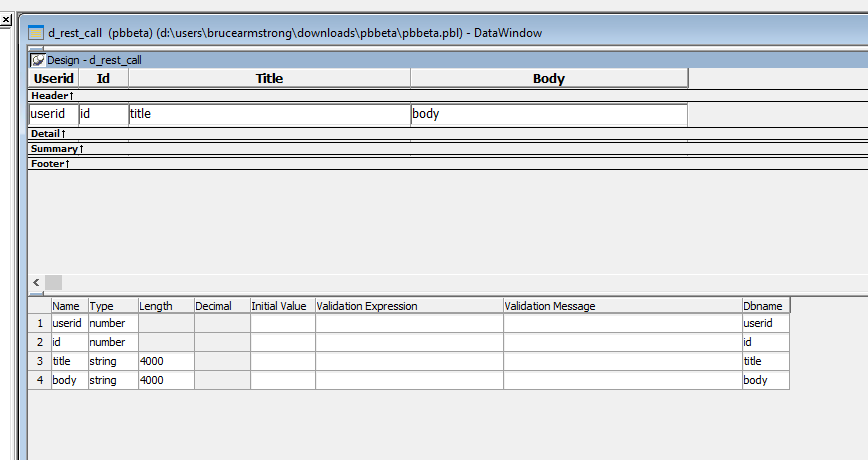

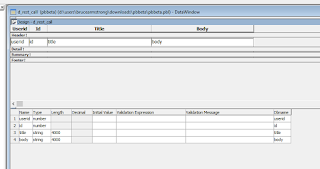

So my DataWindow object looks like this:

The code to retrieve the data from the service and then populate the DataWindow object with it is then rather trivial:

 RESTClient rest
 rest = create RESTClient
 rest.Retrieve( dw_1, "https://jsonplaceholder.typicode.com/posts")

The results look like this:

The RESTClient has a number of other properties and functions that are of interest, though we didn't need to use them here:

HTTPClient, JSONGenerator and JSONParser

For dealing with more complex return data structures - and for dealing with updates -  we can use the HTTPClient, JSONGenerator and JSONParser.  First we're going to retrieve that same data from that same REST web service, but doing it with the HTTPClient.  This involves a bit more code:

 integer    li_rc
 long       ll_id, ll_userid,ll_row,ll_root,ll_index,ll_child,ll_count
 string     ls_string,ls_result,ls_body,ls_title
 httpclient http
 http = create httpclient
 li_rc = http.sendrequest( 'GET', 'https://jsonplaceholder.typicode.com/posts')
 if li_rc = 1 and http.GetResponseStatusCode() = 200 then
     http.GetResponseBody(ls_string)
 end if
 JSONParser json
 json = create JSONParser
 ls_result = json.loadstring( ls_string )
 ll_root = json.getrootitem( )
 ll_count = json.getchildcount( ll_root )
 dw_1.Reset()
 for ll_index = 1 to ll_count
     ll_row = dw_1.InsertRow(0)
     ll_child = json.getchilditem( ll_root, ll_index )
     ll_id = json.getitemnumber( ll_child, "id" )
     dw_1.setItem(ll_row, "id", ll_id)
     ll_userid = json.getitemnumber( ll_child, "userid" )
     dw_1.setItem(ll_row, "userid", ll_userid)
     ls_title = json.getitemstring( ll_child, "title")
     dw_1.setItem(ll_row, "title", ls_title)
     ls_body = json.getitemstring( ll_child, "body")
     dw_1.setItem(ll_row, "body", ls_body)
 next

We use the HTTPClient SendRequest method to call the REST service method, check the response status code using GetResponseStatusCode and, if success, get the data in JSON format using GetResponseBody.  We will then use the JSONParser to parse the JSON data, looping through it and sticking individual data elements in individual rows and columns.

Now lets see how we can perform updates through the REST web service from the DataWindow using those objects:

 integer  li_rc, li_rsc
 long    ll_index, ll_count, ll_id, ll_root
 constant integer OK = 200
 constant integer CREATED = 201
 String      ls_json, ls_result
 dwItemStatus  status
 HttpClient     hc
 JSONGenerator jg
 JSONParser   jp
 hc = create HttpClient
 jg = create JSONGenerator
 jp = create JSONParser
 dw_1.AcceptText()
 ll_count = dw_1.Rowcount( )
 FOR ll_index = 1 TO ll_count
     status = dw_1.GetItemStatus ( ll_index, 0, Primary! )
     CHOOSE CASE status
         CASE NewModified!, DataModified!
             //Inserted or Modified Rows
             ll_root = jg.createjsonobject( )
             jg.AddItemNumber(ll_root, "userid", dw_1.GetItemNumber(ll_index, 'userid'))
             jg.AddItemString(ll_root,'title',dw_1.GetItemString(ll_index,'title'))
             jg.AddItemString(ll_root,'body',dw_1.GetItemString(ll_index,'body'))
             IF status = NewModified! THEN
                 //Inserted
                 ls_json = jg.getjsonstring( )
                 li_rc = hc.sendrequest( 'POST', 'https://jsonplaceholder.typicode.com/posts', ls_json)
                 li_rsc = hc.GetResponseStatusCode()
                 IF li_rsc = CREATED THEN
                     //Get the response, which contains the ID value assigned to the new row
                     hc.GetResponseBody(ls_json)
                     ls_result = jp.loadstring( ls_json )
                     ll_root = jp.getrootitem( )
                     ll_id = jp.getitemnumber( ll_root, "id" )
                     //Set it back into the inserted row
                     dw_1.SetItem ( ll_index, 'id', ll_id )
                 ELSE
                     MessageBox ( parent.title, "Insert Failed" )
                 END IF
             ELSE
                 //Updated
                 ll_id = dw_1.GetItemNumber ( ll_index, 'id' )
                 jg.AddItemNumber(ll_root,"id", ll_id)
                 ls_json = jg.getjsonstring( )
                 li_rc = hc.sendrequest( 'PUT', 'https://jsonplaceholder.typicode.com/posts/' + String ( ll_id ), ls_json)
                 li_rsc = hc.GetResponseStatusCode()
                 IF li_rsc <> OK THEN
                     MessageBox ( parent.title, "Update Failed" )
                 END IF
             END IF
         CASE ELSE
             //skip this row
             CONTINUE
     END CHOOSE
 NEXT
 //Deleted Rows
 ll_count = dw_1.Deletedcount( )
 FOR ll_index = 1 TO ll_count
     ll_id = dw_1.GetItemNumber(ll_index, 'id', Delete!, true)
     li_rc = hc.sendrequest( 'DELETE', 'https://jsonplaceholder.typicode.com/posts/' + String ( ll_id ))
     li_rsc = hc.GetResponseStatusCode()
     IF li_rsc <> OK THEN
         MessageBox ( parent.title, "Delete Failed" )
     END IF
 NEXT
 dw_1.ResetUpdate( )

What I'm doing here is looping through the Primary DataWindow buffer where the inserts and updates are at.  If I find an insert, I use the JSONGenerator to put together a JSON data string that contains the data elements except for the primary key, since that will be returned to us from the POST call.  I then use the HTTPClient SendRequest method to sent the POST with the JSON data.  We then check the response code using HTTPClient GetResponseStatusCode to ensure it was 201 (CREATED) and, if so, use the HTTPClient GetResponseBody to retrieve the data that was returned from the POST call, included the id value that was assigned to the new row.  We then use JSONParser to parse out the id value and set that value back in the DataWindow for that row.

The approach is very similar if the row was updated rather than inserted.  The main differences are that we a) include the primary key value in the JSON for this request, b) use PUT rather than POST to send the data, c) the URL we use to send the data back includes the id value, d) we check for a response value of 200 (OK) rather than 201 (CREATED) and e) we don't need the response data.

For deletes, we loop through the Delete DataWindow buffer.  For deletes we don't need to send the entire row.  Instead we just get the id value for the row and include that as part of the url for the DELETE call.  As with PUT (Update) we check for a 200 (OK) response from the service.

At the very end of the routine, since we've handled the update of the DataWindow manually, we perform a ResetUpdate to clear the row status flags in the Primary DataWindow buffer and clear the Deleted DataWindow buffer.

As with the RESTClient, the HTTPClient has a number of additional properties and functions that will be of use in specific situations.

Coming Attractions

This is enough to get us operational with REST web services, but in some cases it requires a bit of coding.  PowerBuilder 2017 R3 is expected to deliver additional REST functionality that would make using REST even easier.  In particular:

• Support of DataWindow updates directly through the RESTClient.
• Methods to import and export JSON data directly to/from the DataWindow, eliminating the need to use the JSONParser/JSONGenerator to put the JSON data together manually.
